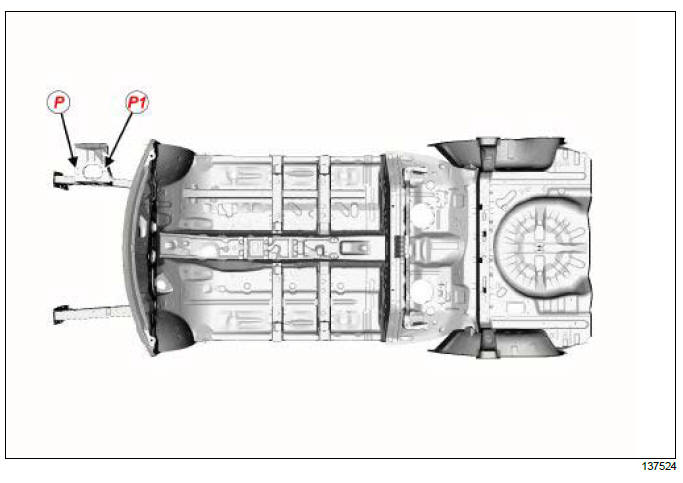

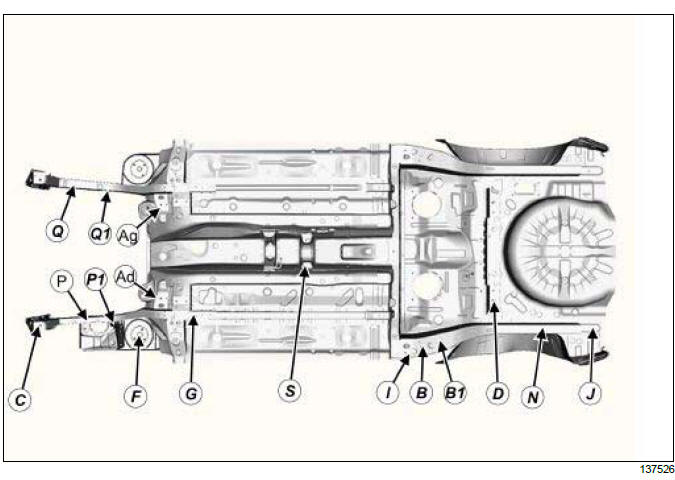

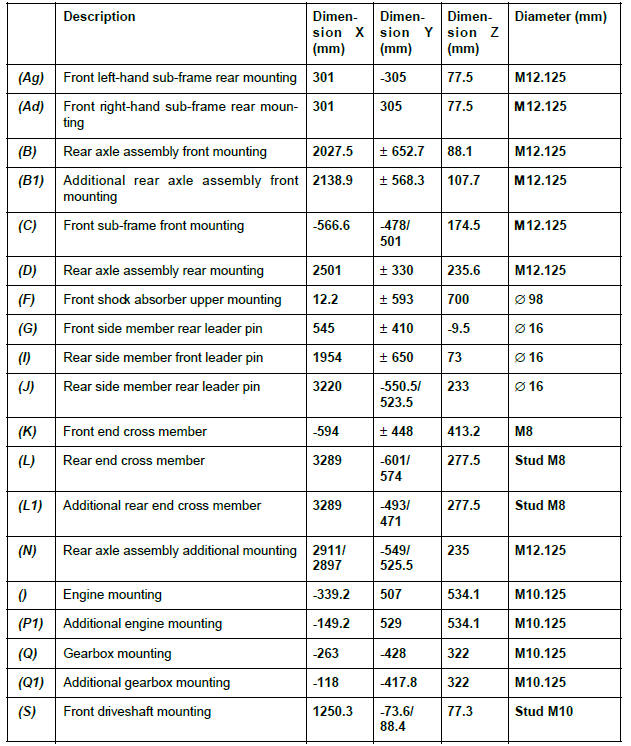

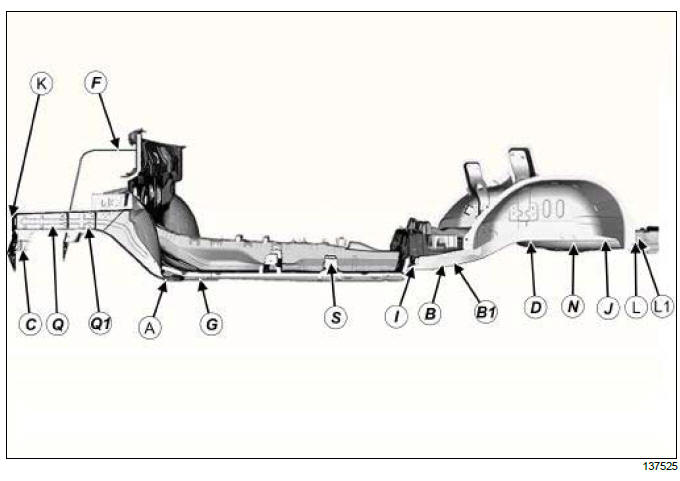

General information Sub-frame: Specifications
A and B = vehicle trim level reference.
|
- Front lower structure
- Front impact cross member: General description
- Front end side cross member: Description
- Front side member: General description
- Front side member: Description
- Front section of front side member closure panel: General description
- Front section of front side member closure panel: Description
- Front side member, central section: General description
- Sub-frame rear mounting: General description
- Engine mounting: General description
- Front half unit: General description
- Centre lower structure
- Centre floor, side section: General description
- Central floor, side section: Description
- Centre floor front lateral cross member: Description
- Rear cross member under front seat: General description
- Side lower structure
- Sill panel: General description
- Sill panel: Description
- Sill panel closure panel: General description
- Sill panel closure panel: Description
- Sill panel reinforcement: General description
- Sill panel reinforcement: Description
- Rear lower structure
- Rear floor: General description
- Rear floor, front section: Description
- Rear floor rear section: General description
- Rear side member assembly: Description
- Rear floor front cross member: Description
- Luggage retainer cross piece: Removal - Refitting
- Front upper structure
- Front wing: Removal - Refitting
- Front wing lower mounting support: Removal - Refitting
- Front: Removal - Refitting
- Scuttle side panel: General description
- Cowl side panel: Description
- Scuttle side panel upper reinforcement: General description
- Front wheel arch: Description
- Dashboard cross member: Removal - Refitting
- Bulkhead: General description
- Bulkhead reinforcement: Description
- Side upper structure
- A-pillar: General description
- B-pillar: General description
- Body side: General description
- Upper body panel: General description
- Rear upper structure
- Rear wing panel: Description
- Outer rear wheel arch: Description
- Inner wheel arch: Description
- Quarter panel lining: General description
- Top of body
- Side opening elements
- Non-side opening elements
