Renault Koleos Service Repair Manual: Cowl side panel: Description

Front upper structure

To replace this part, also order the front wing mounting (A) .

The options for replacing this part are as follows:

  • partial replacement of the front end section,
  • front partial replacement,
  • complete replacement.

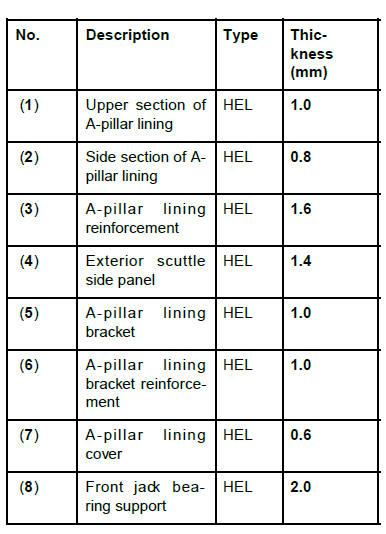

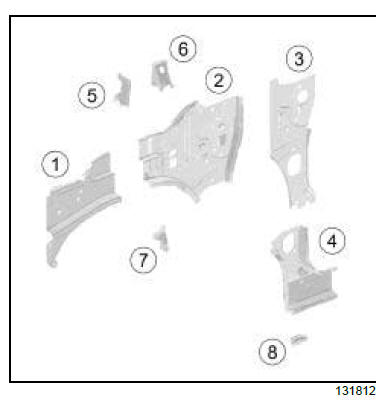

I - COMPOSITION OF THE SPARE PART

Front upper structure

Front upper structure

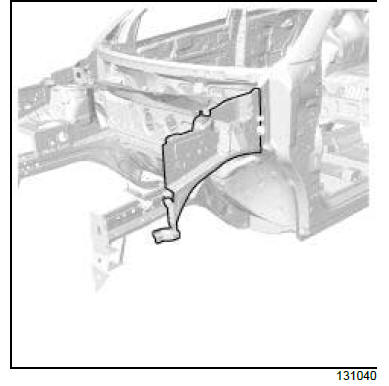

II - PART IN POSITION

Partial replacement of the front end section

Front upper structure

Partial front replacement

Front upper structure

Complete replacement

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Front upper structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).

    Scuttle side panel: General description

    Scuttle side panel upper reinforcement: General description
