Vehicle identification plates

Technical specifications

Technical specifications

The information shown on the vehicle identification plate should be quoted on all correspondence or orders.

The presence and location of the information depends on the vehicle.

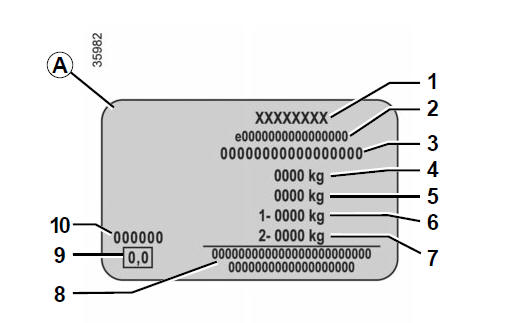

Vehicle identification plate A

  1. Manufacturer name.
  2. EC design number or approval number.
  3. Identification number.

    Depending on the vehicle, this information is also given on marking B.

  4. MAM (Maximum Authorised Mass).
  5. GTW (Gross train weight: vehicle fully loaded, with trailer).
  6. MPAW (Maximim Permissible Weight) for front axle.
  7. MPAW on rear axle.
  8. Reserved for related or additional entries.
  9. Diesel exhaust emissions.
  10. Paint reference (colour code).

Engine identification plates

Technical specifications

Please quote the information on the engine plate or label A in all correspondence or orders.

(Location varies depending on engine)

  1. Engine type.
  2. Engine suffix.
  3. Engine number.

Technical specifications

Technical specifications

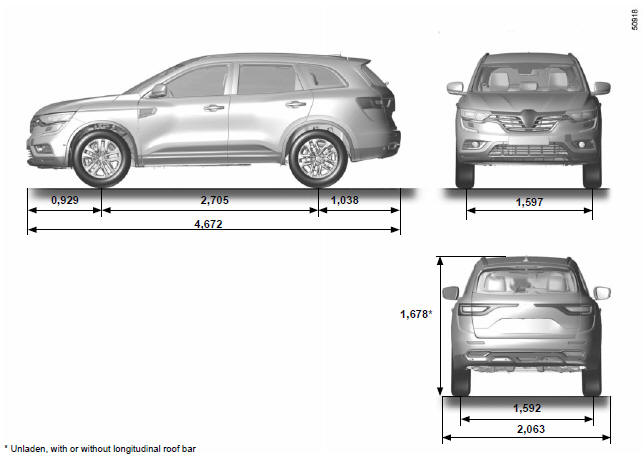

Dimensions (in metres)

Technical specifications

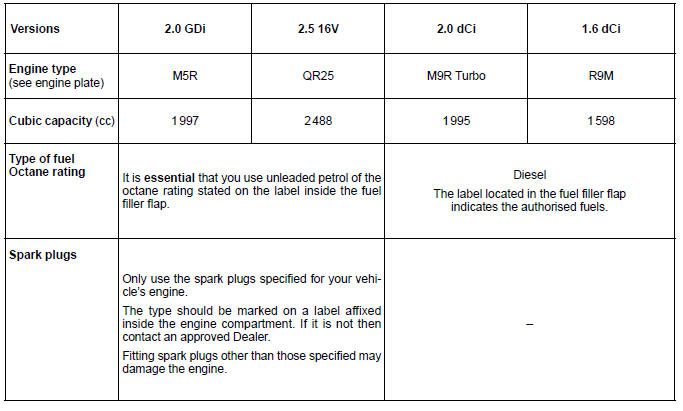

Engine specifications

Technical specifications

Weights (in kg)

The weights indicated for a basic vehicle without options: they vary depending on the your vehicle's equipment. Consult your approved Dealer.

Maximum permissible all-up weight (MMAC)
Maximum permissible all-up weight (MMTA)
Gross Train Weight (MTR)

Weights are indicated on the vehicle identification plate

Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked Trailer Weight* 750
Permissible nose weight* 75 or 80 kg depending on the vehicle (contact your approve dealer)
Maximum permissible load on roof 80 kg (including carrying device)

* Towing weight (towing a caravan, boat, etc.)

Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the identification plate.

  • It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
  • When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is permitted:
    • rear axle MMTA exceeded by no more than 15%,
    • maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).

In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must be increased by 0.2 bar (3 PSI).

  • The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.

Replacement parts and repairs

Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same level of quality as the parts fitted originally.

If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out within the manufacturer's Network using original parts are guaranteed according to the conditions set out on the reverse of the repair order.
