I - LIST OF COMPONENTS

  1. Airbag computer
  2. Driver's front airbag
  3. Passenger front airbag
  4. Front (thorax) side airbag
  5. Curtain side airbag
  6. Front seat lap belt pretensioner
  7. Front seat belt buckle
  8. Rear seat belt buckles
  9. Front side seat belt
  10. Rear side seat belt
  11. Rear centre seat belt
  12. Side impact sensor
  13. Front impact sensor
  14. Inhibitor switch
  15. Front passenger airbag inhibitor switch warning light
  16. Passenger seat belt warning light
  17. Passenger presence sensor

II - LOCATION OF COMPONENTS

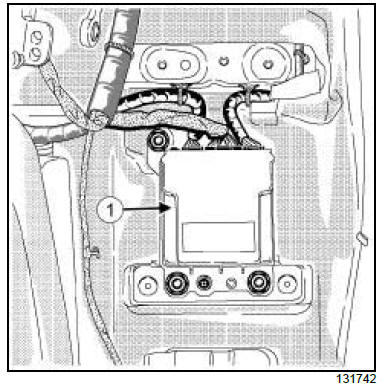

1 - Airbag computer

Electrical equipment

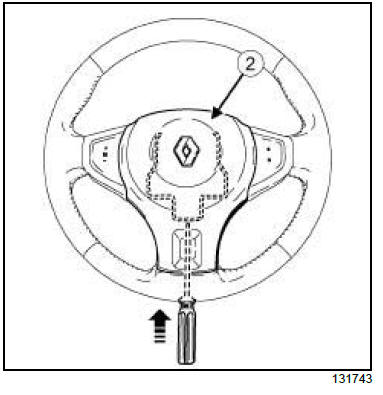

2 - Driver's front airbag

Electrical equipment

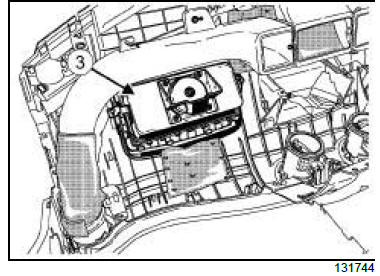

3 - Passenger front airbag

Electrical equipment

4 - Front (chest-level) side airbag

Electrical equipment

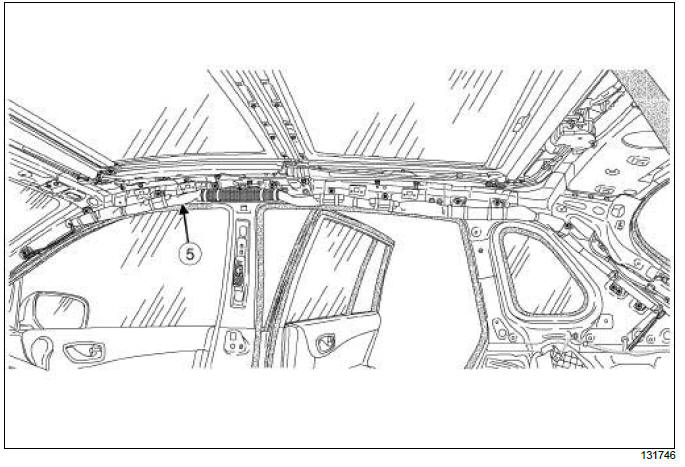

5 - Curtain side airbag

Electrical equipment

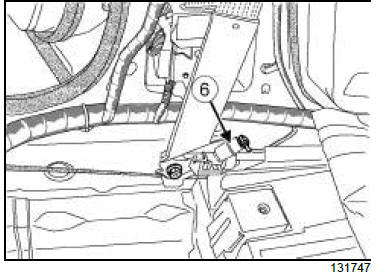

6 - Front seat lap belt pretensioner

Electrical equipment

The front seat lap belt pretensioner cannot be separated from the front side seat belt.

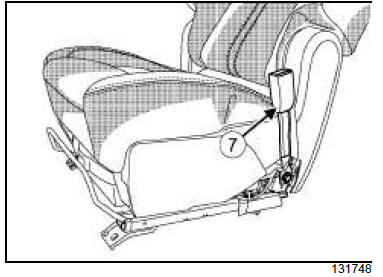

7 - Front seat belt buckle

Electrical equipment

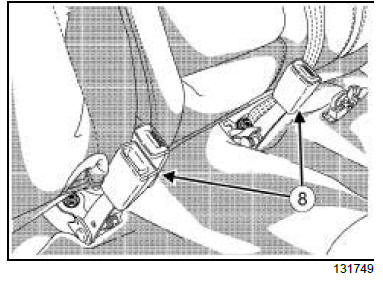

8 - Rear seat belt buckles

Electrical equipment

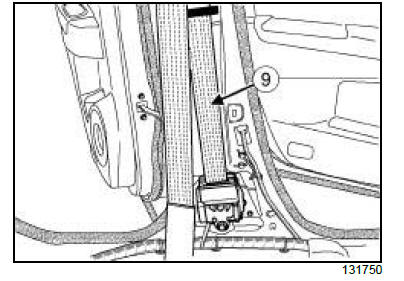

9 - Front side seat belt

Electrical equipment

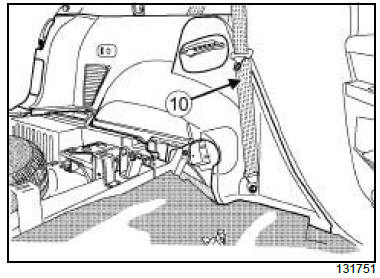

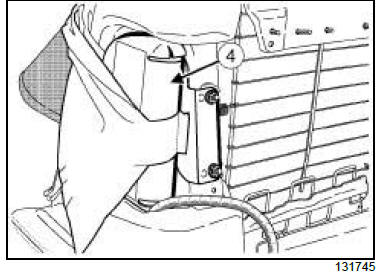

10 - Rear side seat belt

Electrical equipment

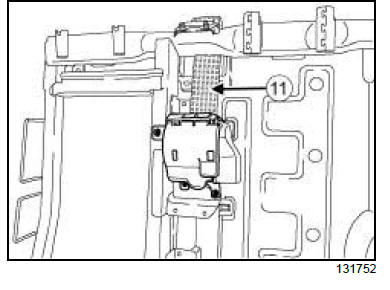

11 - Rear centre seat belt

Electrical equipment

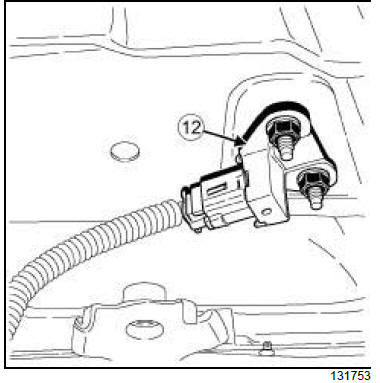

12 - Side impact sensor

Electrical equipment

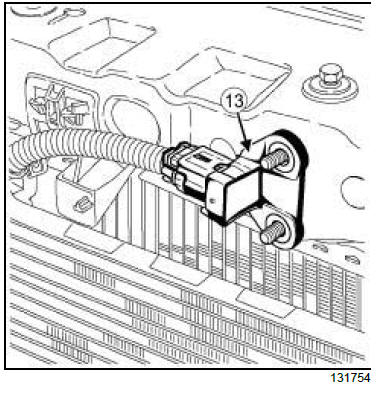

13 - Front impact sensor

Electrical equipment

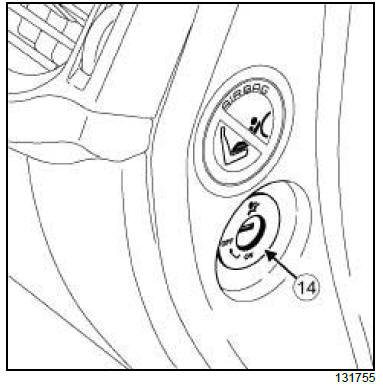

14 - Inhibitor switch

Electrical equipment

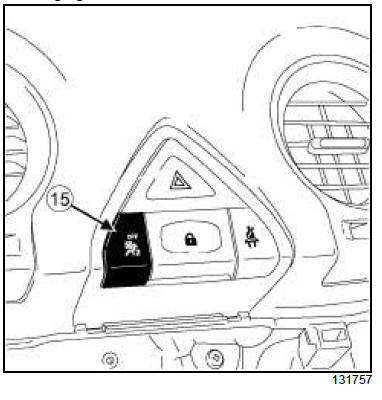

15 - Passenger front airbag inhibitor switch WARNING light

Electrical equipment

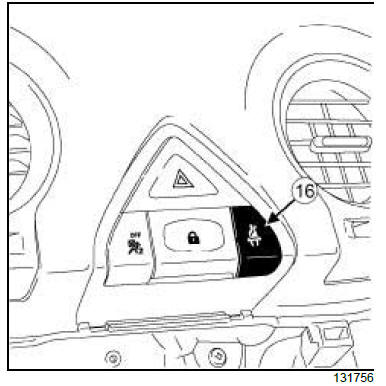

16 - Passenger seat belt WARNING light

Electrical equipment

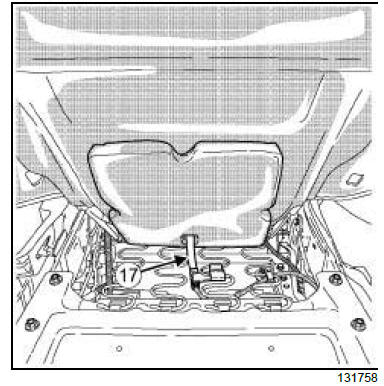

17 - Passenger presence sensor

Electrical equipment

To remove it.
