Renault Koleos Service Repair Manual: Air filter: Removal - Refitting

2TR

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.

Fuel mixture

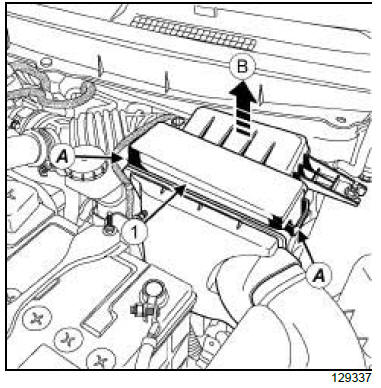

  • Press the tabs (A) on both sides of the air filter cover.
  • Pull upwards on the air filter cover (1) and remove it (B) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

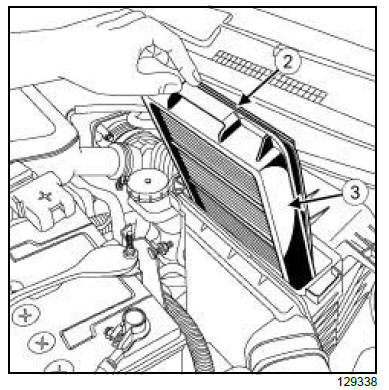

  • Remove:
    • the filter element (2) and the support (3) from the air filter unit,
    • the filter element (2) from the support (3) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Clean the air filter unit if necessary.
  • Always replace the filter element (2) .

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the filter element (2) on the support (3) ,
    • the support (3) on the air filter unit.

III - FINAL OPERATION

  • Refit the air filter cover (1) .

M9R

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Fuel mixture

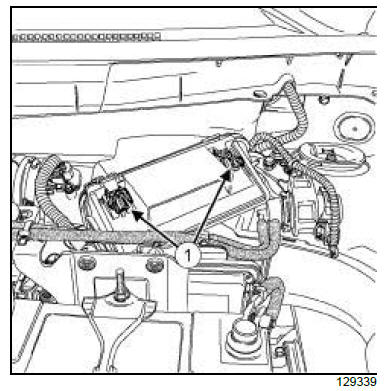

  • Unclip the air filter unit cover at (1) .

Fuel mixture

  • Remove:

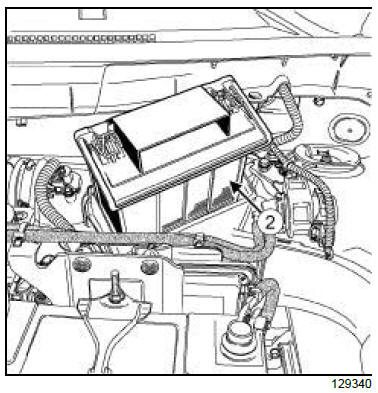

    • the filter element - cover assembly (2) from the air filter unit,
    • the filter element from the air filter unit cover.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Clean the air filter unit.
WARNING If the air filter is fitted incorrectly in the air filter unit, unfiltered air may enter the engine.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the filter element on the air filter unit cover,
    • the filter element - cover assembly on the air filter unit.
  • Clip on the air filter unit cover.
