Renault Koleos Service Repair Manual: A-pillar: General description

WARNING The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component.

DESIGN OF THE STRUCTURAL COMPONENT

Note: For a detailed description of a particular connection, see MR 400, 40A, General Information.

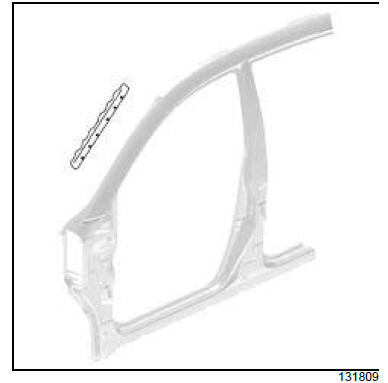

Side upper structure

This is a basic part, its only function is that of an A-pillar.

WARNING If the spot welds cannot be made as they were originally using an electrical spot welding machine, they should be replaced with plug welds after holes have been drilled in the first panel.

Windscreen pillar lining: General description

Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Side upper structure

This is a basic part, its only function is that of the windscreen pillar lining.

If there are other issues regarding access to mating faces, the various replacement options are described in the basic instructions for structural bodywork repair (see MR 400).

Windscreen pillar lining: Description

The options for replacing this part are as follows:

  • partial replacement,
  • complete replacement.

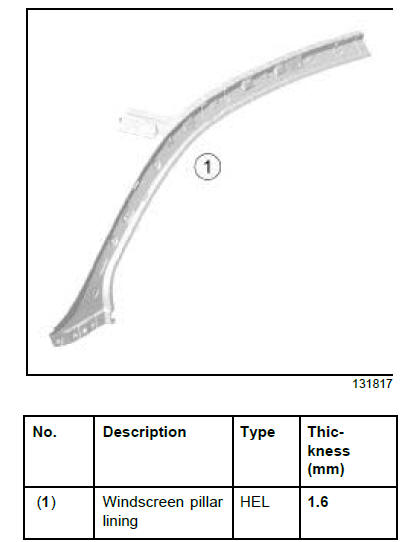

I - COMPOSITION OF THE SPARE PART

Side upper structure

II - PART FITTED

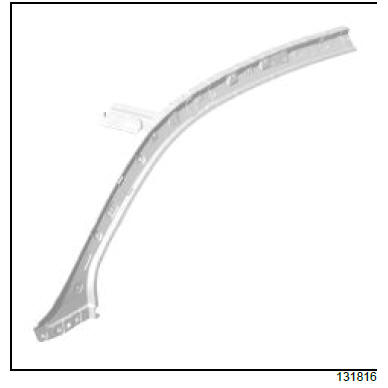

Complete replacement

Side upper structure

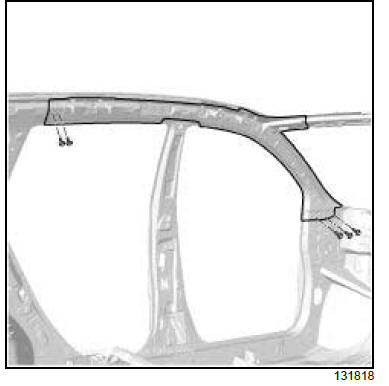

Partial replacement

Side upper structure

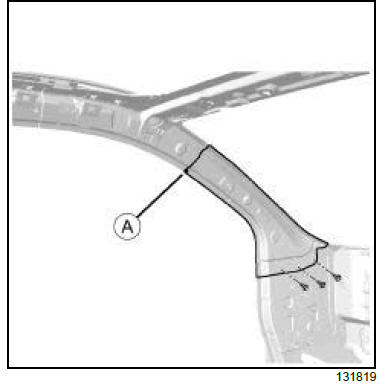

Detailed view of cut A

Side upper structure

    Side upper structure
