The options for replacing this part are as follows:

  • front partial replacement,
  • partial replacement under door:
  • Rear partial replacement
  • complete replacement.
IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

I - COMPOSITION OF THE SPARE PART

Side lower structure

II - PART FITTED

Partial front replacement

Side lower structure

Section A

Side lower structure

Section B

Side lower structure

Replacement under door

Side lower structure

Section C

Side lower structure

Partial rear replacement

Side lower structure

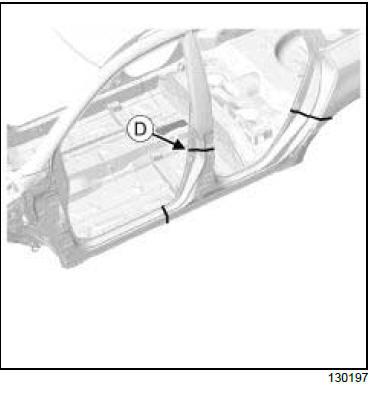

Section D

Side lower structure

Front section replacement

Side lower structure

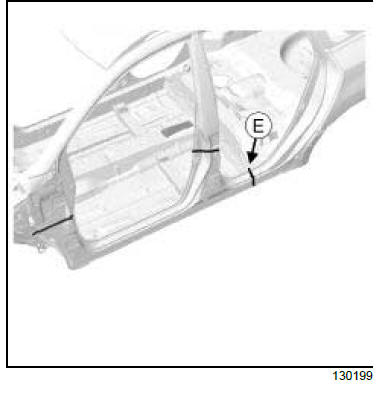

Section E

Side lower structure

Partial replacement of the rear end section

Side lower structure

Section F

Side lower structure

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Side lower structure

WARNING To avoid damaging the vehicle's electrical and electronic components, disconnect the earths of any wiring near the weld area.

Position the welding machine earth as close as possible to the weld zone (see MR 400).
    Sill panel: General description

    Sill panel closure panel: General description
