Rear lower structure

The options for replacing this part are as follows:

  • partial replacement of the side stiffener,
  • complete replacement.

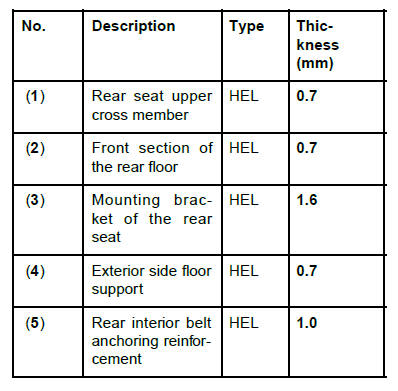

I - COMPOSITION OF THE SPARE PART

Rear lower structure

Rear lower structure

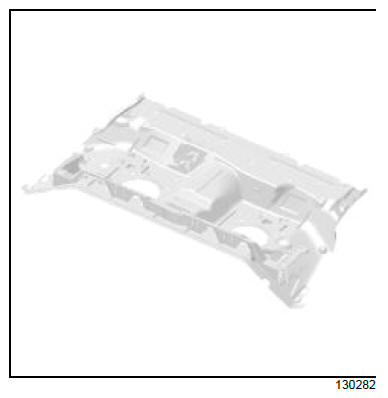

II - PART FITTED

WARNING To preserve the mechanical specifications when partially replacing parts with a single structural component, alter the weld lines for each of these components.



WARNING Respect the position of this cut which has been determined in accordance with the position of the inner stiffeners or acoustic inserts, in order to prevent damaging the parts (inner stiffener and/or acoustic insert).

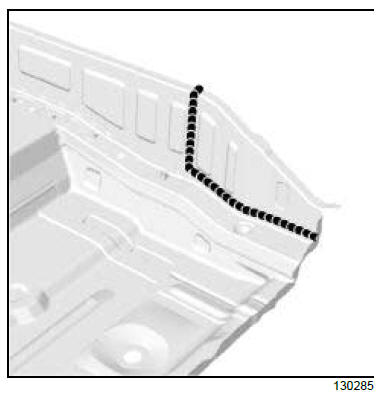

Partial replacement of the rear section

Rear lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

Rear lower structure

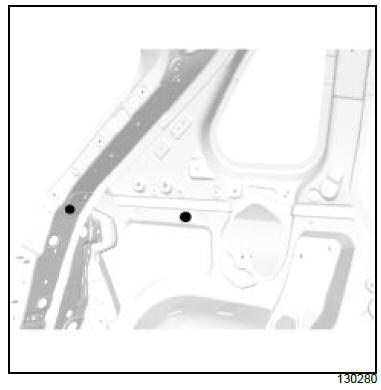

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Rear lower structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the earth of the welding machine as closely as possible to the weld area (see MR 400).
    Rear floor: General description

    Rear floor rear section: General description
