REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Place a container underneath the windscreen washer bottle.
  • Remove the windscreen washer bottle neck (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) .
  • Disconnect:

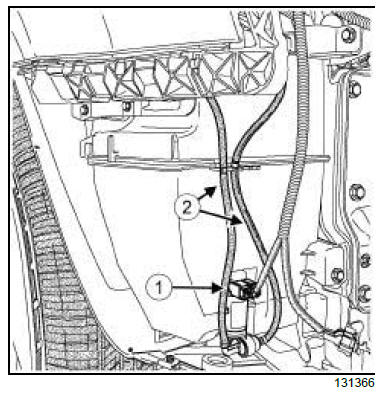

    • the connector (1) from the windscreen washer pump,
    • the supply pipes (2) .

Electrical equipment

  • Remove:

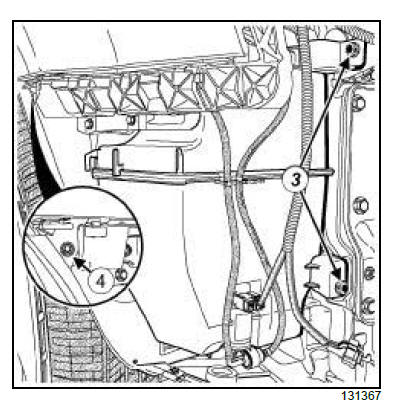

    • the front bolts (3) of the windscreen washer bottle,
    • the rear bolt (4) of the windscreen washer bottle,
    • the windscreen washer bottle,
    • the windscreen washer pump from the windscreen washer bottle.
Note: Mark the routing of the supply pipes and wiring.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the windscreen washer pump to the windscreen washer bottle,
    • the windscreen washer bottle,
    • the front bolts of the windscreen washer bottle,
    • the rear bolt of the windscreen washer bottle.

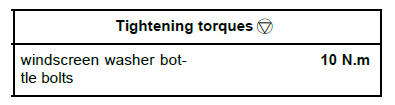

  • Torque tighten the windscreen washer bottle bolts (10 N.m).
  • Connect:
    • the supply pipes,
    • the windscreen washer pump connector.
  • Refit the windscreen washer bottle neck (see 85A, Wiping - Washing, Windscreen washer reservoir neck: Removal - Refitting, page 85A-26) .

II - FINAL OPERATION.

  • Refit the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
  • Fill the windscreen washer bottle.

Windscreen washer reservoir neck: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

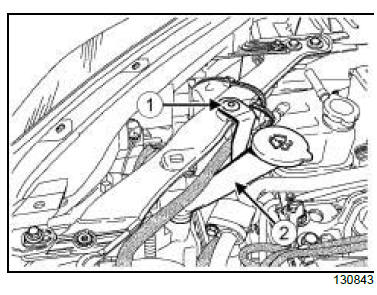

  • Unfasten clip (1) .
  • Separate the neck (2) from the windscreen washer bottle.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Refit the windscreen washer bottle neck.
  • Engage clip.
