Renault Koleos Service Repair Manual / Panelwork / Rear upper structure / Inner wheel arch: Description

Left-hand side

Rear upper structure

Right-hand side

Rear upper structure

There is only one way of replacing this part:

  • complete replacement.

I - COMPOSITION OF THE SPARE PART

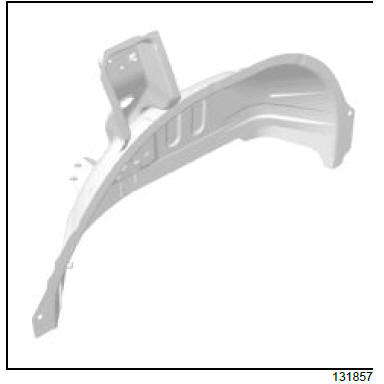

Left-hand side

Rear upper structure

Rear upper structure

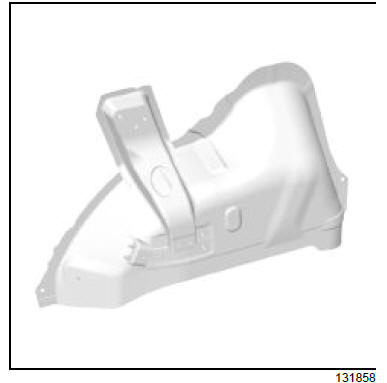

Right-hand side

Rear upper structure

II - PART IN POSITION

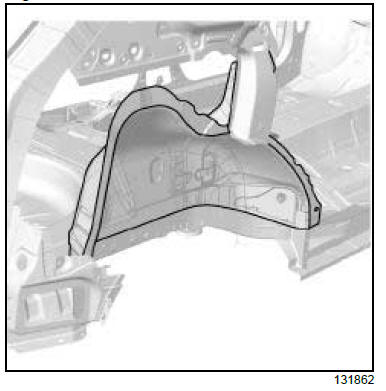

Left-hand side

Rear upper structure

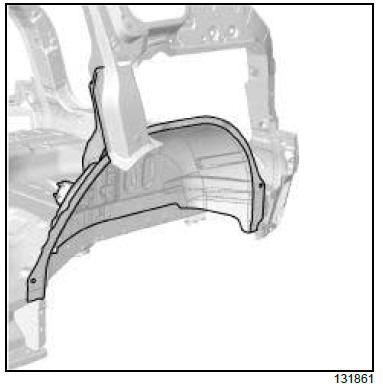

Right-hand side

Rear upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
