Renault Koleos Service Repair Manual: Bulkhead reinforcement: Description

Renault Koleos Service Repair Manual / Panelwork / Front upper structure / Bulkhead reinforcement: Description

Front upper structure

There is only one way of replacing this part:

  • complete replacement.

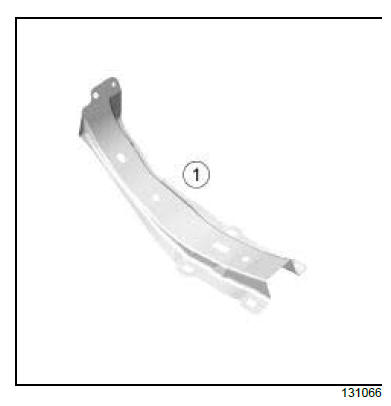

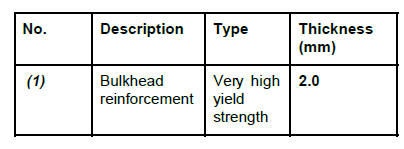

I - COMPOSITION OF THE SPARE PART

Front upper structure

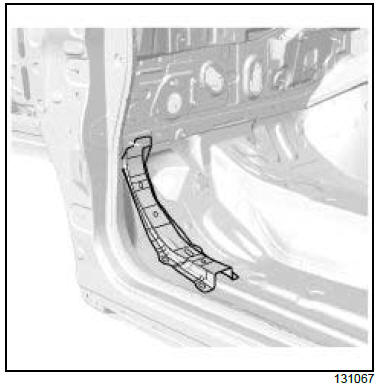

II - PART FITTED

Complete replacement

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

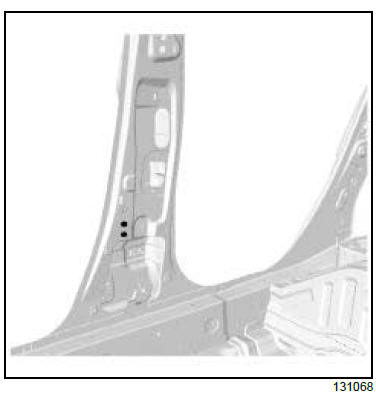

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Front upper structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).

Bulkhead lower cross member: Description

Front upper structure

There is only one way of replacing this part:

  • complete replacement.

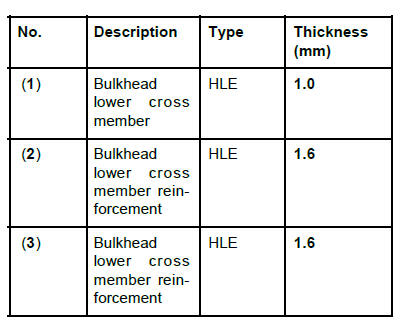

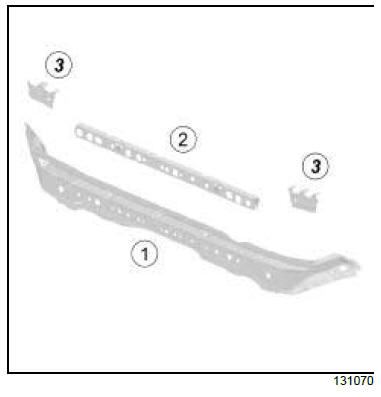

I - COMPOSITION OF THE SPARE PART

Front upper structure

Front upper structure

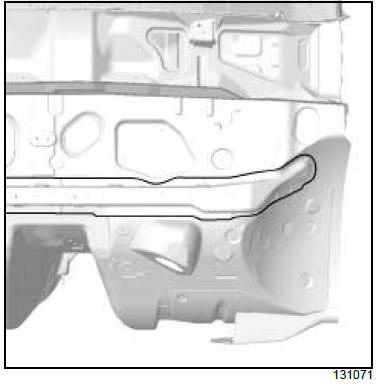

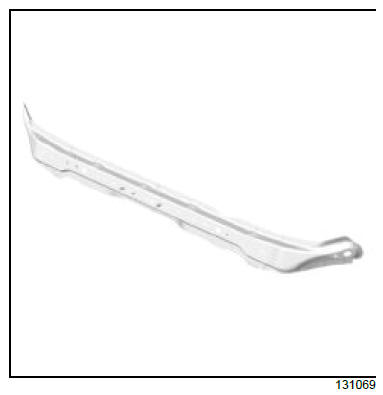

II - PART FITTED

Complete replacement

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
    Bulkhead: General description

    Side upper structure
