Renault Koleos Service Repair Manual: Front wheel arch: Description

Renault Koleos Service Repair Manual / Panelwork / Front upper structure / Front wheel arch: Description

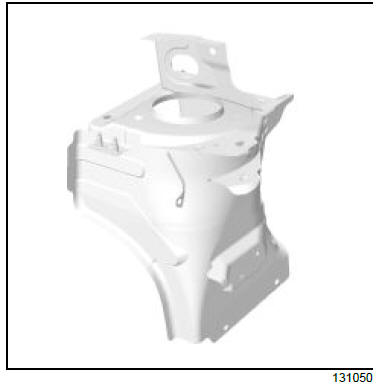

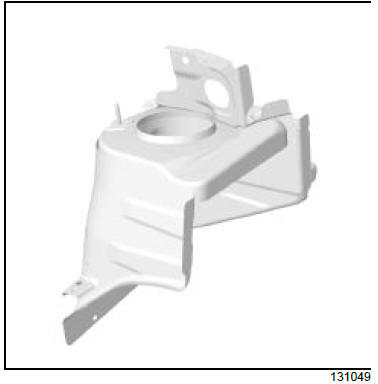

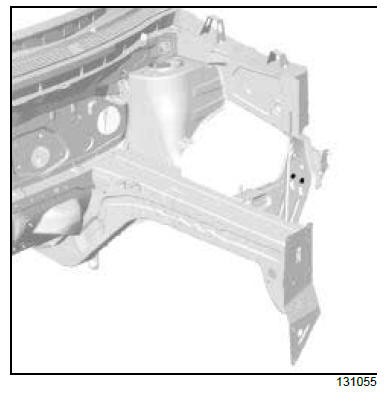

Front left-hand wheel arch

Front upper structure..

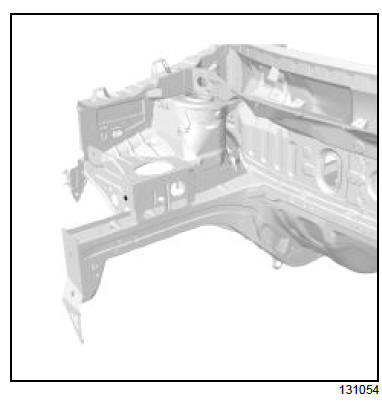

Front right-hand wheel arch

Front upper structure

There is only one way of replacing this part:

  • complete replacement.
IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

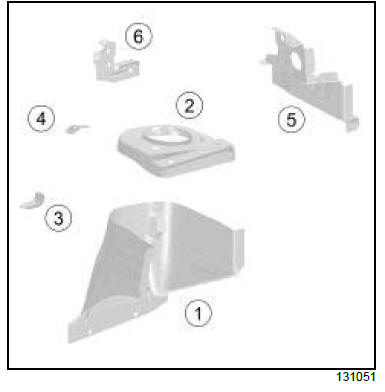

I - COMPOSITION OF THE SPARE PART

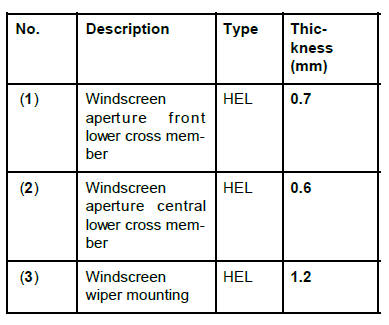

Front left-hand wheel arch

Front upper structure

Front upper structure

Front right-hand wheel arch

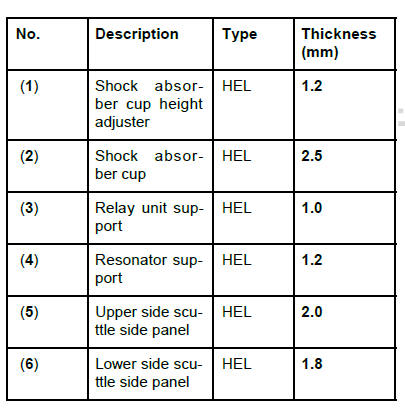

Front upper structure

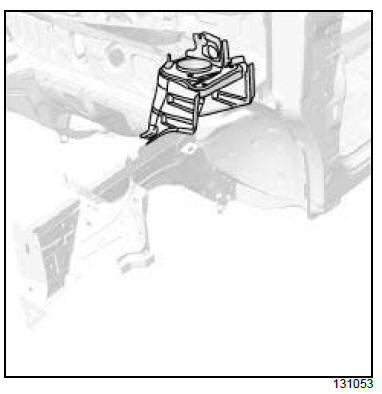

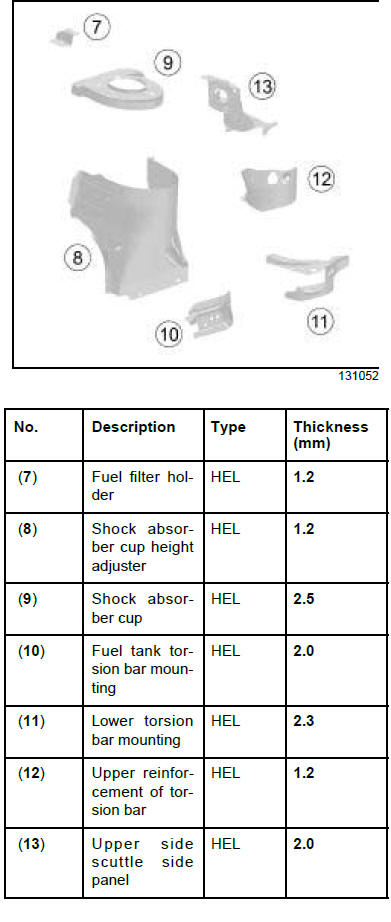

II - PART FITTED

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Front upper structure

Front upper structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).

Windscreen aperture lower cross member: Description

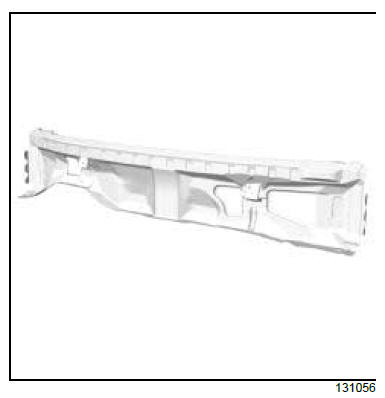

Front upper structure

There is only one way of replacing this part:

  • complete replacement.

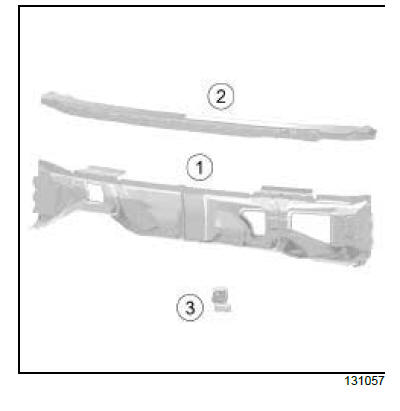

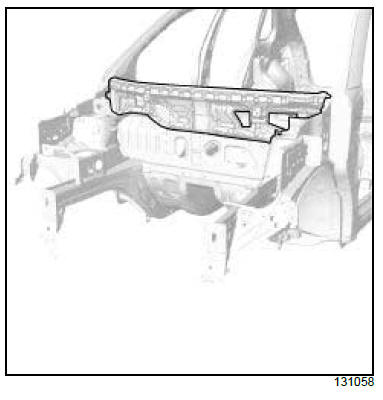

I - COMPOSITION OF THE SPARE PART

Front upper structure

Front upper structure

II - PART FITTED

Front upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
