Front lower structure

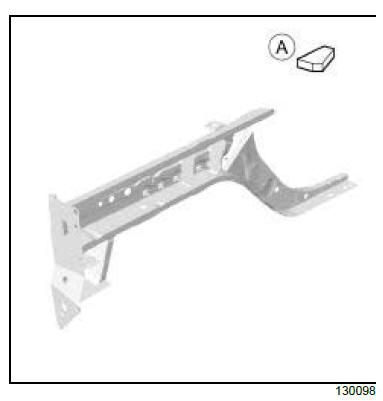

To replace this part, order the front side member expanding insert (A) .

The options for replacing this part are as follows:

  • partial replacement of front end section,
  • partial replacement of the front section.
IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

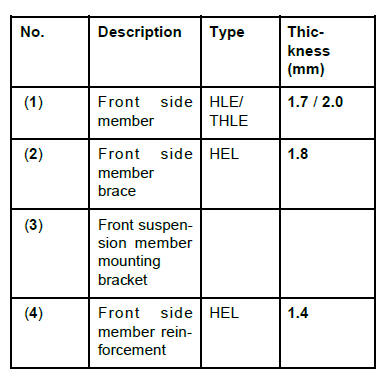

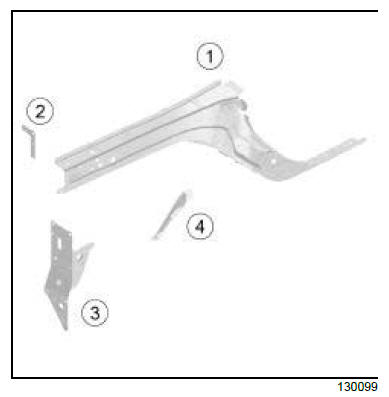

I - COMPOSITION OF THE SPARE PART

Front lower structure

Front lower structure

II - PART FITTED

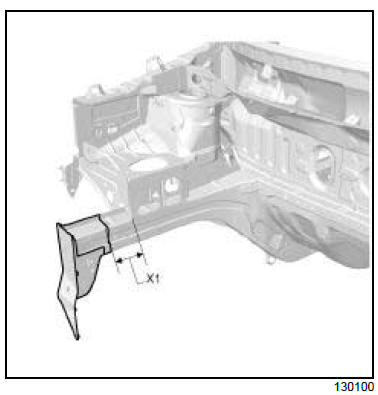

1 - Partial replacement of front end section (right-hand side)

WARNING Respect the position of this cut which has been determined in accordance with the position of the inner stiffeners or acoustic inserts, in order to prevent damaging the parts (inner stiffener and/or acoustic insert).

Front lower structure

(X1) = 82 mm

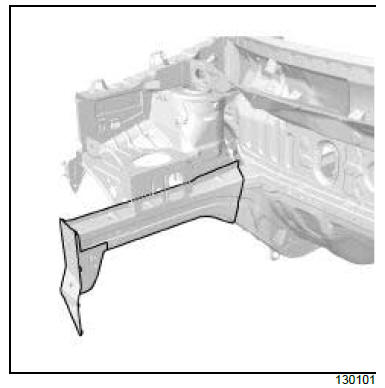

2 - Partial replacement of front end section (right-hand side)

Front lower structure

WARNING To preserve the mechanical specifications of the part, make the cut along the line of the original butt weld.

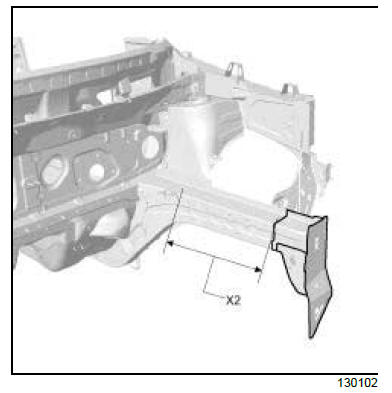

3 - Partial replacement of front end section (lefthand side)

Front lower structure

(X2) = 335 mm

WARNING Respect the position of this cut which has been determined in accordance with the position of the inner stiffeners or acoustic inserts, in order to prevent damaging the parts (inner stiffener and/or acoustic insert).

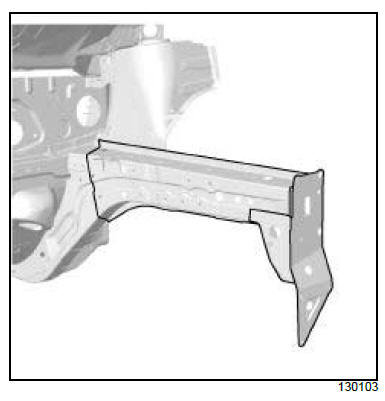

4 - Partial replacement of front end section (left-hand side)

Front lower structure

WARNING To preserve the mechanical specifications of the part, make the cut along the line of the original butt weld.

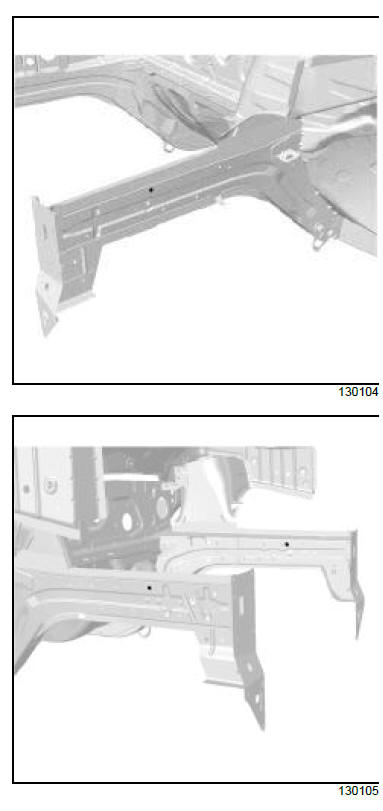

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).

Front lower structure
