Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading the following general information, make sure that there are no special notes associated with the vehicle. These special notes are specified if necessary in other parts of the sub-section dealing with the component.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Top of body

This is a basic part; its only function is that of a roof.

The roof is welded onto the body sides.

For vehicles fitted with a sunroof, the roof only has a front section and a rear section.

If there are other issues regarding access to mating faces, the various replacement options are described in the basic instructions for structural bodywork repair (see MR 400).

Roof: Description

There is only one way of replacing this part:

  • complete replacement.

I - COMPOSITION OF THE SPARE PART

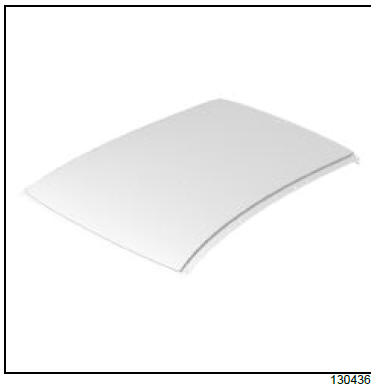

Normal roof

Top of body

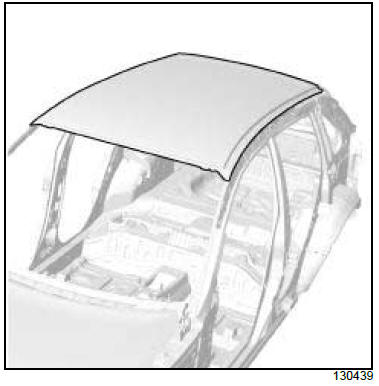

Roof with sunroof

Top of body

Top of body

II - PART FITTED

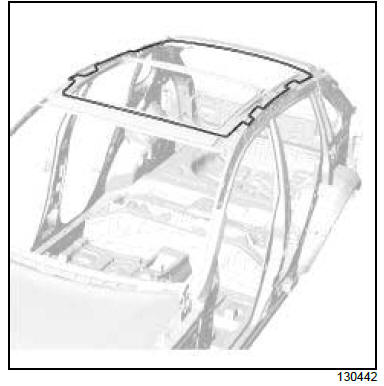

Front section

Top of body

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

Rear section

Top of body

Note: The procedure presents no difficulties.

Roof bonding area

Normal roof front side section

Top of body

Sunroof front side section

Top of body

    Top of body

    Roof front section: Description
