Renault Koleos Service Repair Manual: Rear floor front cross member: Description

Renault Koleos Service Repair Manual / Panelwork / Rear lower structure / Rear floor front cross member: Description

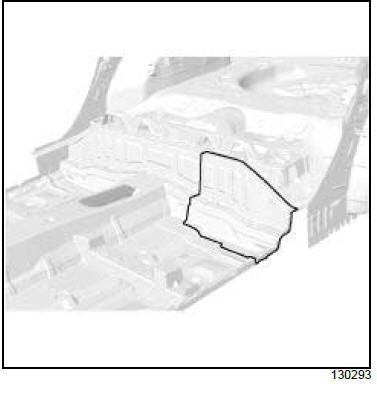

Rear lower structure

There is only one way of replacing this part:

  • partial replacement.

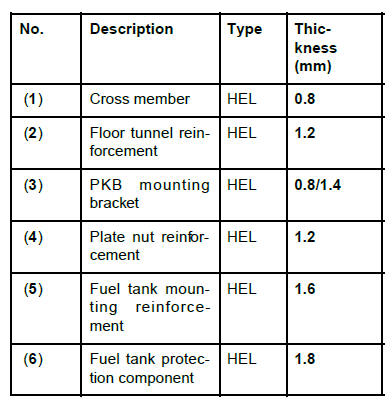

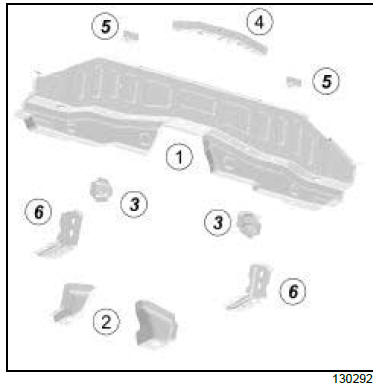

I - COMPOSITION OF THE SPARE PART

Rear lower structure

Rear lower structure

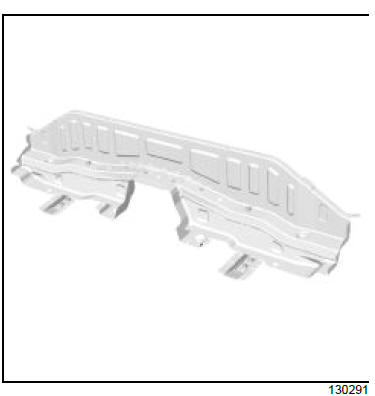

II - PART FITTED

Partial replacement

Rear lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

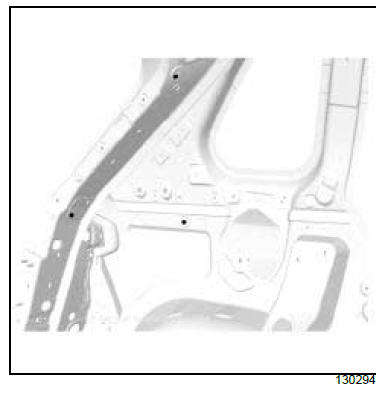

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

Rear lower structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the earth of the welding machine as closely as possible to the weld area (see MR 400).

Rear floor centre cross member: General description

WARNING The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, see MR 400, 40A, General Information.

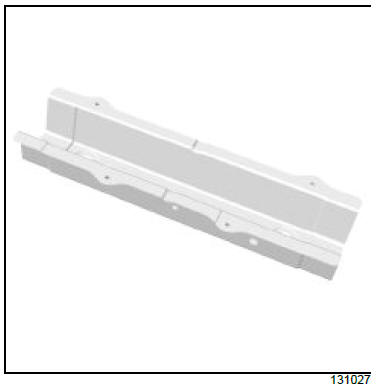

DESIGN OF THE STRUCTURAL COMPONENT

Rear lower structure

This is a basic part; it only fulfils the function of a rear floor centre cross member.

Rear floor centre cross member: Description

Rear lower structure

There is only one way of replacing this part:

  • complete replacement.

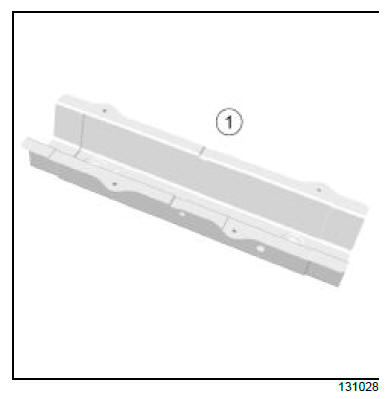

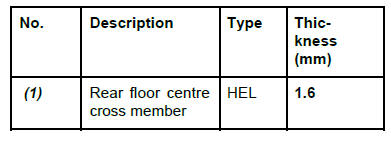

I - COMPOSITION OF THE SPARE PART

Rear lower structure

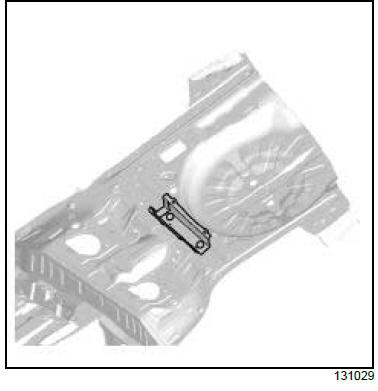

II - PART FITTED

Complete replacement

Rear lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
    Rear side member assembly: Description

    Luggage retainer cross piece: Removal - Refitting
