Renault Koleos Service Repair Manual: Radio control satellite: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Radio / Radio control satellite: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.



IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.
  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove:
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) ,
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the half cowlings (see Steering column: Removal - Refitting) (36A, Steering assembly).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

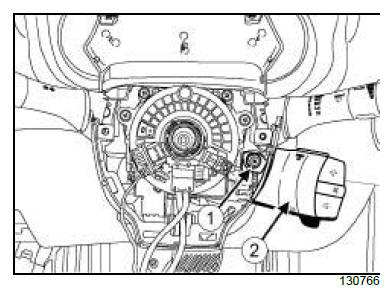

  • Remove:
    • the bolts (1) ,
    • the radio control satellite (2) .

Electrical equipment

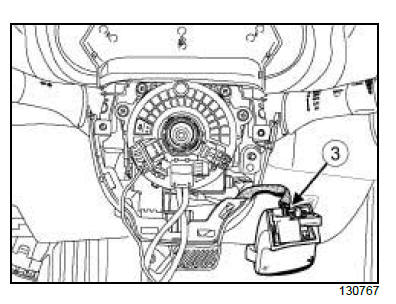

  • Disconnect the connector (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connector.
  • Refit:
    • the radio control satellite,
    • the bolts.

II - FINAL OPERATION.

  • Refit:
    • the half cowlings (see Steering column: Removal - Refitting) (36A, Steering assembly),
    • the steering wheel (see Steering wheel: Removal - Refitting) (36A, Steering assembly),
    • the driver's front airbag (see 88C, Air bag and Pretensioners, Driver's frontal airbag: Removal - Refitting, page 88C-10) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
