REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear central luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim).

Electrical equipment

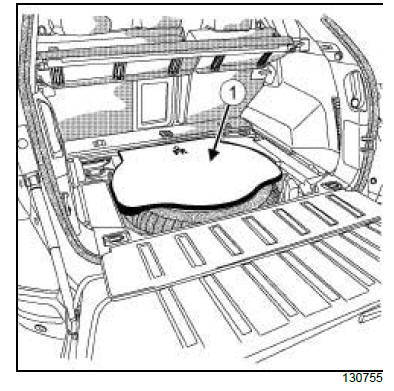

  • Remove the front luggage compartment floor casing (1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

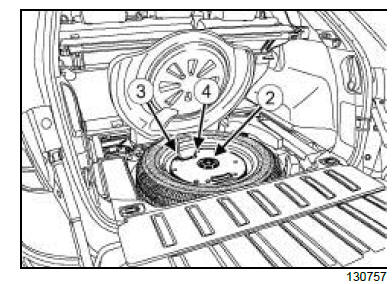

  • Remove the mounting bracket (2) .
  • Unclip the wiring clip (3) .
  • Disconnect the connector (4) .
  • Remove the subwoofer.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the subwoofer.
  • Connect the connector.
  • Clip on the wiring clip.
  • Refit the mounting bracket.

II - FINAL OPERATION.

Note: The emergency spare wheel and the subwoofer must be mounted correctly.
  • Refit:
    • the front luggage compartment floor casing,
    • the rear central luggage compartment floor (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim).
