UCH: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .

Electrical equipment

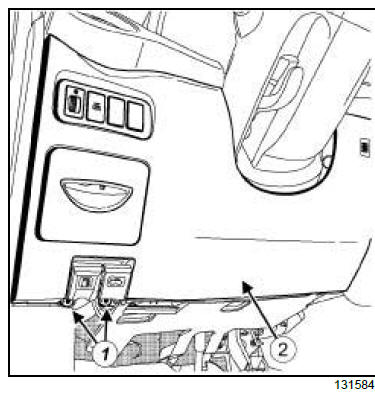

  • Remove:
    • the bolts (1) ,
    • the lower cover (2) .

Electrical equipment

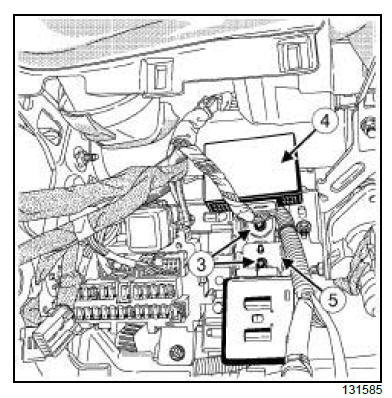

  • Remove:
    • the bolts (3) ,
    • the tyre pressure monitor computer (4) ,
    • the additional cornering lights computer (5) .

Electrical equipment

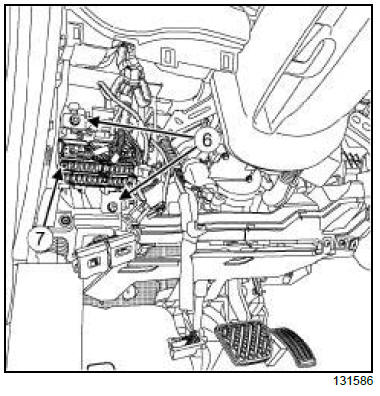

  • Remove the bolts (6) .
  • Move aside the passenger compartment fuse and relay box (7) .

Electrical equipment

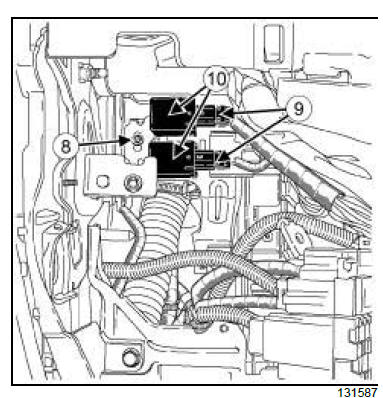

  • Remove the bolt (8) .
  • Disconnect the connectors (9) .
  • Remove the relays (10) .

II - REMOVAL OF PART CONCERNED

Electrical equipment

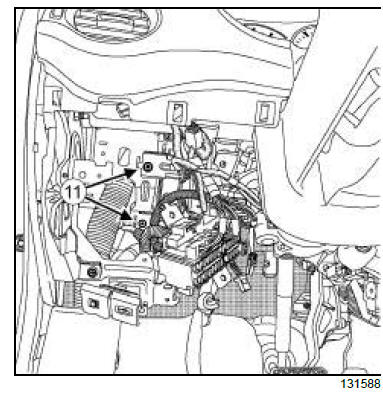

  • Remove the bolts (11) .

Electrical equipment

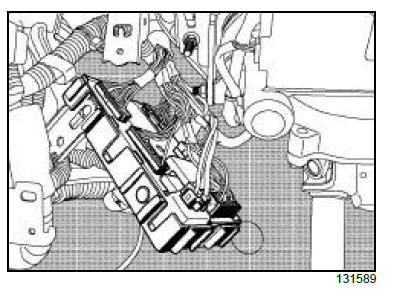

  • Disconnect the connectors.

Electrical equipment

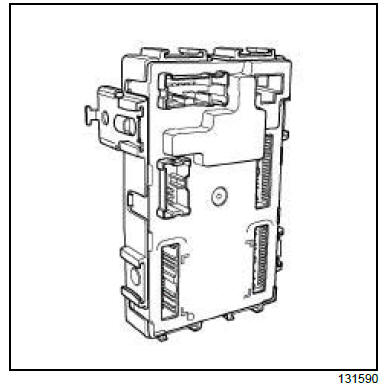

  • Remove the UCH.

REFITTING

I - REFITTING PART CONCERNED

  • Refit the UCH.
  • Connect the connectors.
  • Refit the bolts (11) .

II - FINAL OPERATION.

  • Refit the relays.
  • Connect the connectors.
  • Refit the bolts (8) .
  • Fit the passenger compartment fuse and relay box in its original position.
  • Refit:
    • the bolts (6) ,
    • the additional cornering lights computer,
    • the tyre pressure monitor computer,
    • the bolts (3) ,
    • the lower cover (2) ,
    • the bolts (1) .
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • When replacing the UCH, carry out the necessary operations using the Diagnostic tool (see Fault finding - Replacement of components) (87B, Passenger compartment connection unit).
