Renault Koleos Service Repair Manual: Rear wing panel: Description

Renault Koleos Service Repair Manual / Panelwork / Rear upper structure / Rear wing panel: Description

The options for replacing this part are as follows:

  • partial replacement,
  • complete replacement.

I - COMPOSITION OF THE REPLACEMENT PART

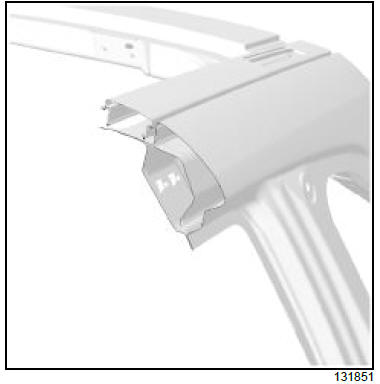

Rear upper structure

II - PART FITTED

Partial replacement

Rear upper structure

Section A

Rear upper structure

Section B

Rear upper structure

Complete replacement

Rear upper structure

Section C

Rear upper structure

Section D

Rear upper structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).



Note: For welded connections in three thicknesses, the spot welds on the part replaced should be made in the same place as for the original joint to retain the mechanical specifications of the connection. See MR 400.

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

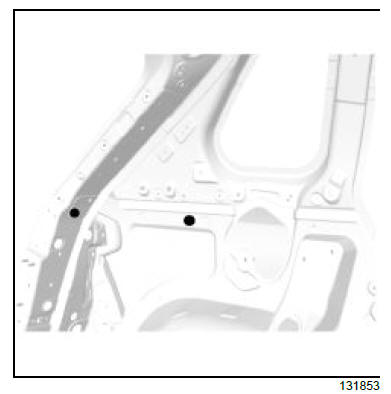

Rear upper structure

WARNING To avoid damaging the vehicles electric and electronic components, the earths of any wiring harness near the weld area must be disconnected.

Position the welding machine earth as close as possible to the weld zone (see MR 400).
    Rear upper structure
