Renault Koleos Service Repair Manual: Front axle system: Adjustment

General information

I - ADJUSTMENT VALUES

Note: Measure the value unladen. Unladen means that the fuel tank and the engine and oil coolant reservoirs are full. The emergency spare wheel, jack, hand tools and carpets are in place.

II - ADJUSTMENT

  • Before checking the axle assemblies on the test bench, check the tyre inflation pressure (see 35A, Wheels and tyres, Tyre pressure: Identification, page 35A-8) (35A, Wheels and tyres).

1 - Castor angle

  • Not adjustable.

2 - Camber

  • Not adjustable.

3 - Pivot

  • Not adjustable.

4 - Wheel alignment

  • Set the wheels straight ahead.
  • Lock the steering wheel using the flywheel immobiliser.
  • Adjust the wheel alignment by rotating the track rod sleeves.

General information

  • Loosen the wheel alignment adjustment lock nut (1) .
  • Turn the track rod sleeve (2) to obtain the required value.

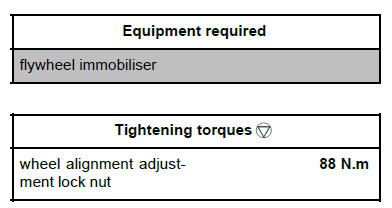

  • After adjustment, torque tighten the wheel alignment adjustment lock nut (88 N.m).
    Front axle assembly: Adjustment values

    Rear axle assembly: Adjustment values
