Note: Measure the value unladen. Unladen means that the fuel tank and the engine and lubricant coolant reservoirs are full. The emergency spare wheel, jack, hand tools and carpets are in place.

I - WHEEL ALIGNMENT: MEANING OF SYMBOLS

WARNING

Symbols used by RENAULT:

-: toe-out,
+: toe-in.

Toe-out: minus sign

General information

Toe-in: plus sign

General information

II - WHEEL ALIGNMENT

General information

III - CASTOR ANGLE

Not adjustable

General information

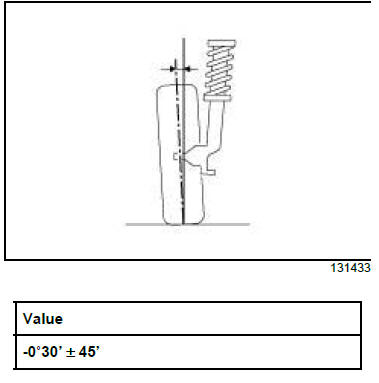

IV - CAMBER

Not adjustable

General information

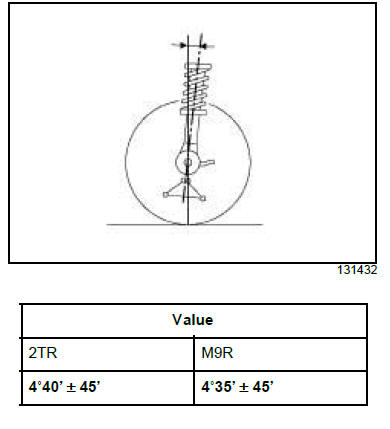

V - PIVOT

Not adjustable

General information

    Underbody heights: Adjustment value

    Front axle system: Adjustment
