Renault Koleos Service Repair Manual: Rear axle assembly: Adjustment values

Renault Koleos Service Repair Manual / Chassis / General information / Rear axle assembly: Adjustment values

Note: Measure the value unladen. Unladen means that the fuel tank and the engine and oil coolant reservoirs are full. The emergency spare wheel, jack, hand tools and carpets are in place.

I - WHEEL ALIGNMENT: MEANING OF SYMBOLS

WARNING

Symbols used by RENAULT:

-: toe-out,
+: toe-in.

Toe-out: minus sign

General information

Toe-in: plus sign

General information

II - WHEEL ALIGNMENT

General information

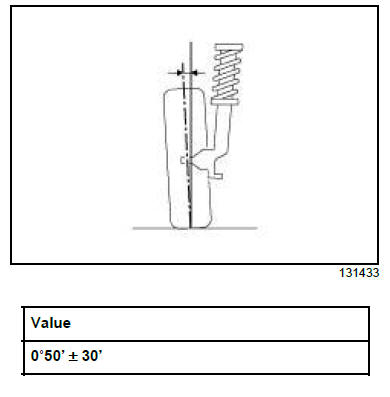

III - CAMBER

General information

    Front axle system: Adjustment

    Rear axle system: Adjustment
