REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

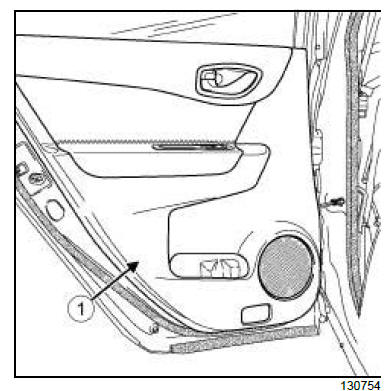

  • Remove the rear side door trim (1) (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

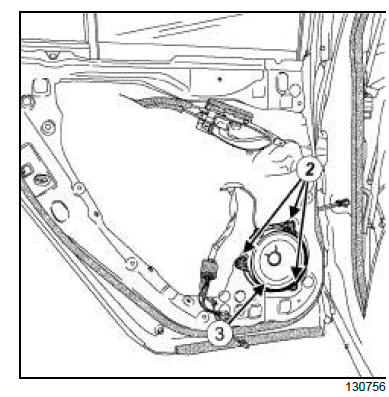

  • Remove:
    • the bolts (2) ,
    • the rear speaker (3) .
  • Disconnect the rear speaker connector.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the rear speaker connector.
  • Refit:
    • the rear speaker (3) ,
    • the rear speaker bolts (2) .

II - FINAL OPERATION

  • Refit the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
