Renault Koleos Service Repair Manual: Front speakers: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Front door speaker

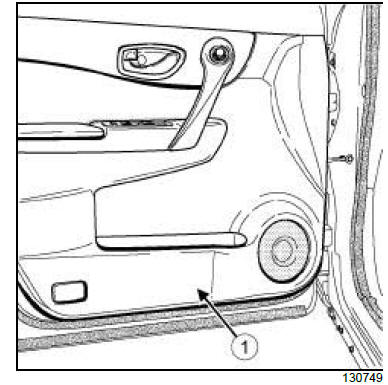

• Remove the front side door trim (1) (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).

2 - Front centre speaker

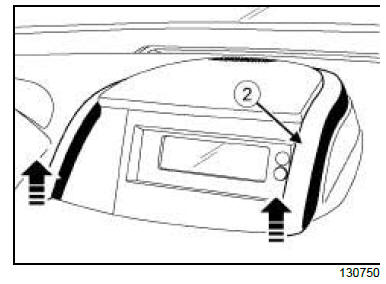

• Remove the front centre speaker trim (2) .

• Remove:

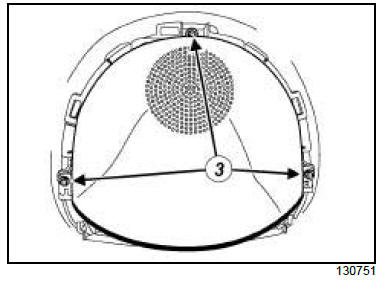

  • the front centre speaker cover bolts (3) ,
  • the front centre speaker cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Front door speaker

• Remove:

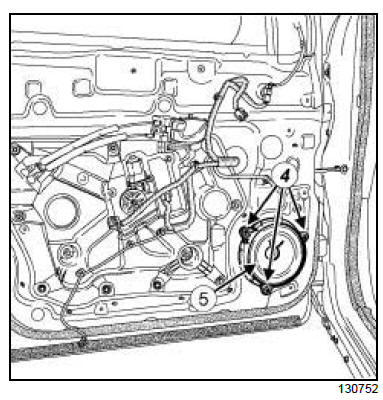

  • the bolts (4) ,
  • the front speaker (5) .
• Disconnect the connector.

2 - Front centre speaker

• Remove:

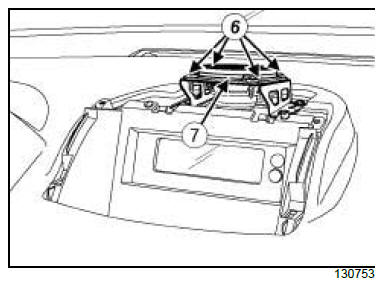

  • the bolts (6) ,
  • the front centre speaker (7) .
• Disconnect the connector.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Front door speaker

• Connect the front door speaker connector.
• Refit:
  • the front door speaker,
  • the front door speaker bolts.

2 - Front centre speaker

• Connect the front centre speaker connector.
• Refit:
  • the front centre speaker,
  • the front centre speaker bolts.

II - FINAL OPERATION.

1 - Front door speaker

• Refit the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening elements trim).

2 - Front centre speaker

• Refit:
  • the front centre speaker cover,
  • the front centre speaker cover bolts,
  • the front centre speaker trim.
