Renault Koleos Service Repair Manual: Tweeter: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Radio / Tweeter: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

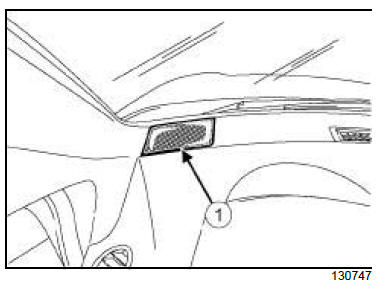

  • Unclip the tweeter grille (1) using a flat-blade screwdriver.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Remove:
    • the bolts (2) ,
    • the tweeter (3) .
  • Disconnect the tweeter speaker connector.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the tweeter speaker connector.
  • Refit:
    • the tweeter,
    • the tweeter bolts.

II - FINAL OPERATION.

  • Refit the tweeter grille.
