Renault Koleos Service Repair Manual: CD changer: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Radio / CD changer: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

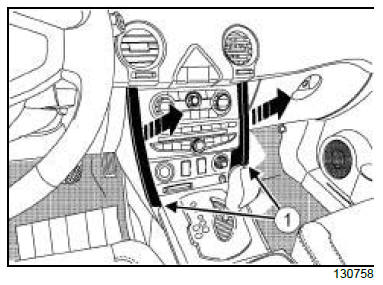

  • Remove the centre front panel side trim (1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

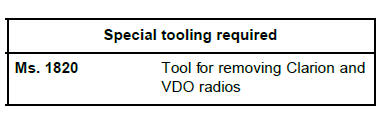

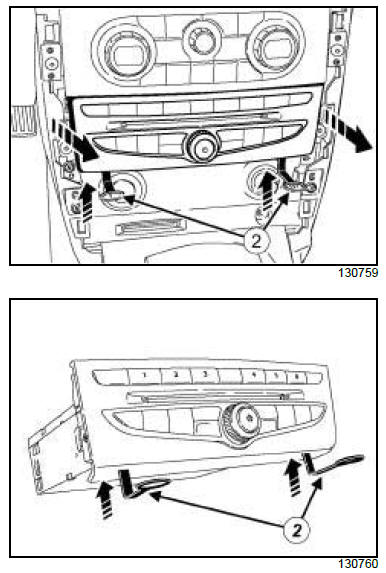

  • Remove the radio using the tool (Ms. 1820) (2) .
  • Disconnect the connectors.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connectors.
  • Refit the radio.

II - FINAL OPERATION

  • Refit the centre front panel side trim.
