Renault Koleos Service Repair Manual: Front bumper: Stripping - Rebuilding

STRIPPING

I - STRIPPING PREPARATION OPERATION

  • Remove the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1) .

II - STRIPPING OPERATION FOR PART CONCERNED

Exterior protection

Note: Mark the direction in which the proximity radar connector is fitted before removal.

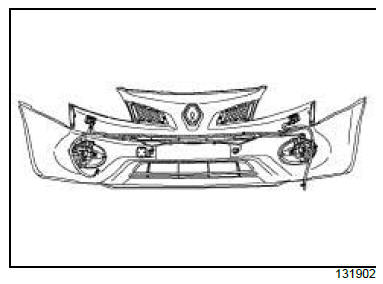

Exterior protection

  • Remove:

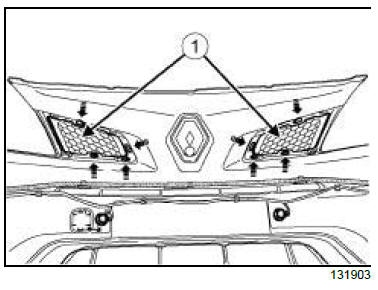

    • the front bumper grilles (1) ,
    • the proximity radars (depending on the equipment level) (see Proximity radar: Removal - Refitting) (87F, Parking distance control),
    • the front bumper wiring,
    • the headlight washer jet (depending on the equipment level) (see Headlight washer jet: Removal - Refitting) (85A, Wiping - Washing),
    • the headlight washer pipe,
    • the front fog light (see Front fog light: Removal - Refitting) (80B, Headlights).

REBUILDING

I - REBUILDING OPERATION FOR PART CONCERNED

WARNING The distance control radars are fragile. Handle with care as the external part cannot withstand impacts.

When drying the bumper and/or proximity radars, the temperature must not exceed 60ºC.

  • Refit:
    • the front fog light (see Front fog light: Removal - Refitting) (80B, Headlights),
    • the headlight washer pipe,
    • the headlight washer jet (depending on the equipment level) (see Headlight washer jet: Removal - Refitting) (85A, Wiping - Washing),
    • the front bumper wiring,
    • the proximity radars (depending on the equipment level) (see Proximity radar: Removal - Refitting) (87F, Parking distance control),
    • the front bumper grilles (1) .

II - FINAL OPERATION.

  • Refit the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1) .
