Renault Koleos Service Repair Manual: Rear bumper: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior protection

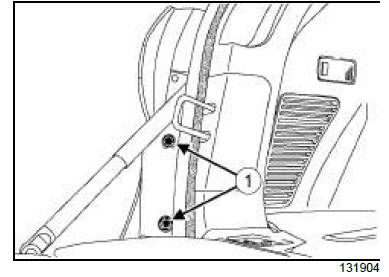

  • Remove the clips (1)

Exterior protection

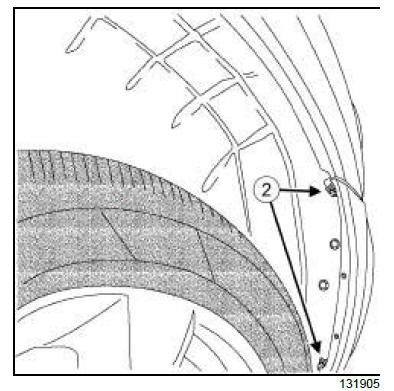

  • Remove the bolts (2) .

Exterior protection

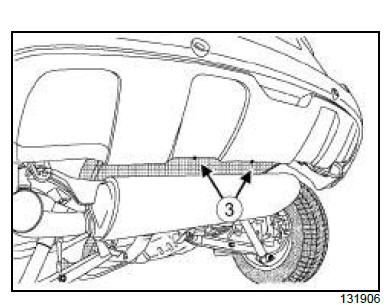

  • Remove the clips (3) .

Exterior protection

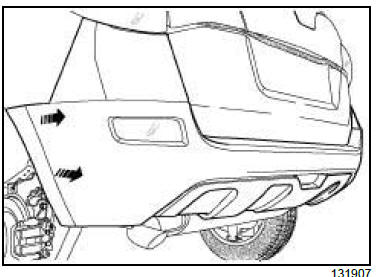

  • Remove the rear bumper partially.
  • Disconnect the various connectors (according to the equipment level).
  • Remove the rear bumper (this operation requires two people).

REFITTING

I - REFITTING PREPARATION OPERATION

  • Connect the various connectors (depending on equipment level).

II - REFITTING OPERATION FOR PART CONCERNED

  • Position the rear bumper (this operation requires two people).
  • Refit:
    • the clips (3) ,
    • the bolts (2) ,
    • the clips (1) .

III - FINAL OPERATION.

  • Carry out a function test on the proximity radar.
