Renault Koleos Service Repair Manual: Front bumper: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the engine undertray,
    • the front wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior protection

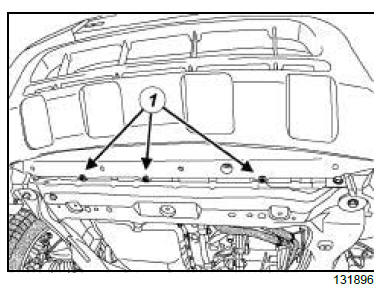

  • Remove the clips (1) .

Exterior protection

  • Remove:

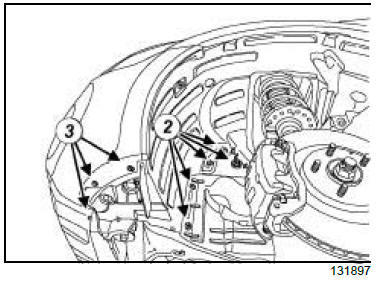

    • the clips (2) ,
    • the bolts (3) ,
    • the front section of the front wheel arch liner.

Exterior protection

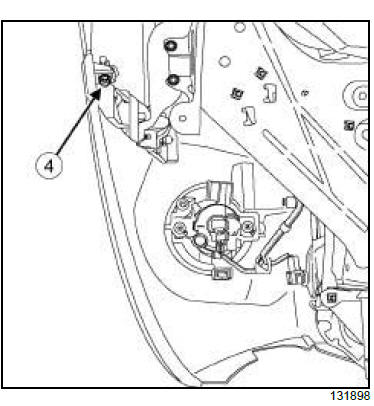

  • Remove the bolt (4) .

Exterior protection

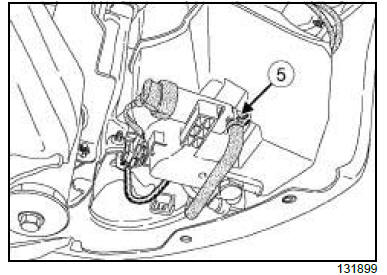

  • Disconnect the headlight washer jets supply pipe (5) (depending on the equipment level).

Exterior protection

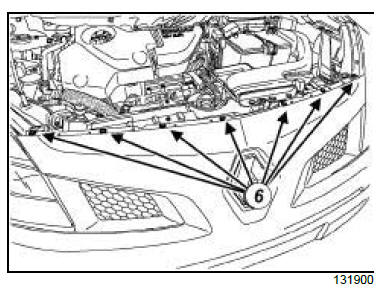

  • Remove the clips (6) .

Exterior protection

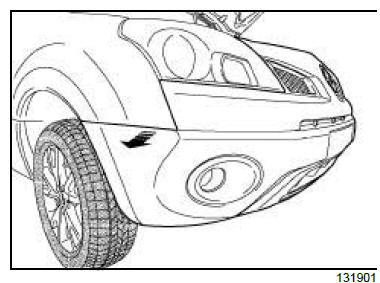

  • Remove the front bumper unit (this operation requires two people).
  • Disconnect the various connectors (according to the equipment level).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect:
    • the various connectors (depending on the equipment level),
    • the headlight washer jets supply pipe (5) (depending on the equipment level).
  • Refit:
    • the front bumper (this operation requires two people),
    • the clips (6) ,
    • the bolt (4) ,
    • the bolts (3) ,
    • the clips (2) ,
    • the clips (1) .

II - FINAL OPERATION.

  • Refit:
    • the front wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the engine undertray.
