Renault Koleos Service Repair Manual: Front side door lock barrel: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Driver's side door

  • Remove:
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim),
    • the front side door sliding window (see 54A, Windows, Front side door sliding window: Removal - Refitting, page 54A-4) (54A, Windows),
    • the front side door control module (see 51A, Side opening element mechanisms, Front side door electric window mechanism: Removal - Refitting, page 51A-10) ,
    • the lock blanking cover.

2 - Passenger side door

  • Remove the lock blanking cover.

II - OPERATION FOR REMOVAL OF PART CONCERNED

1 - Driver's side door

Side opening element mechanisms

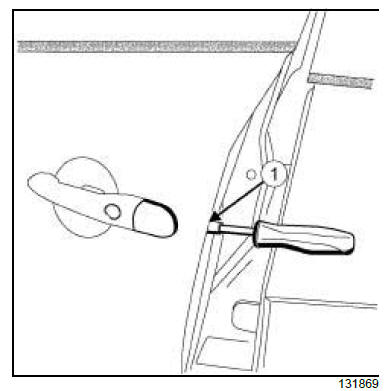

  • Undo the bolt (1) without removing it.

Side opening element mechanisms

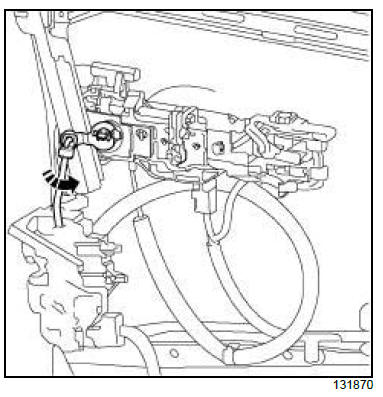

  • Disconnect the lock locking rod.

Side opening element mechanisms

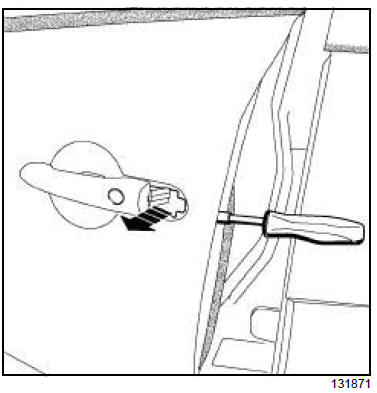

  • Remove the lock barrel.

2 - Passenger side door

Side opening element mechanisms

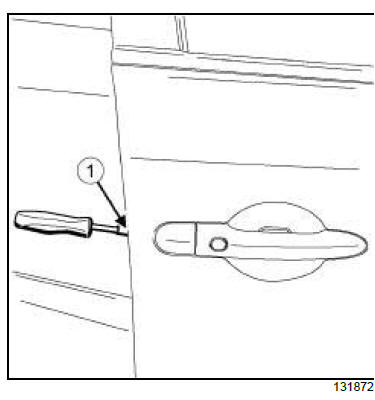

  • Undo the bolt (1) without removing it.

Side opening element mechanisms

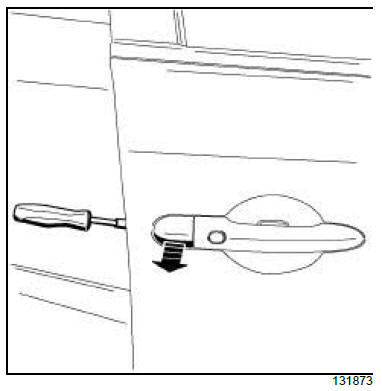

  • Remove the lock barrel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Driver's side door

  • Refit the door lock barrel.
  • Connect the locking rod on the lock.
  • Refit the bolt (1) .

2 - Passenger side door

  • Refit the door lock barrel.
  • Refit the bolt (1) .

II - FINAL OPERATION.

1 - Driver's side door

  • Refit:
    • the lock blanking cover,
    • the front side door control module (see 51A, Side opening element mechanisms, Front side door electric window mechanism: Removal - Refitting, page 51A-10) ,
    • the front side door sliding window (see 54A, Windows, Front side door sliding window: Removal - Refitting, page 54A-4) (54A, Windows),
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim).

2 - Passenger side door

  • Refit the lock blanking cover.
    Front side door lock: Removal - Refitting

    Exterior door handle: Removal - Refitting
