Renault Koleos Service Repair Manual: Front side door lock: Removal - Refitting

Side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim),
    • the front side door sliding window (see 54A, Windows, Front side door sliding window: Removal - Refitting, page 54A-4) (54A, Windows),
    • the front side door control module (see 51A, Side opening element mechanisms, Front side door electric window mechanism: Removal - Refitting, page 51A-10) ,
    • the lock blanking cover,
    • the front side door lock barrel (see 51A, Side opening element mechanisms, Front side door lock barrel: Removal - Refitting, page 51A-5) ,
    • the door exterior handle (see 51A, Side opening element mechanisms, Exterior door handle: Removal - Refitting, page 51A-7) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

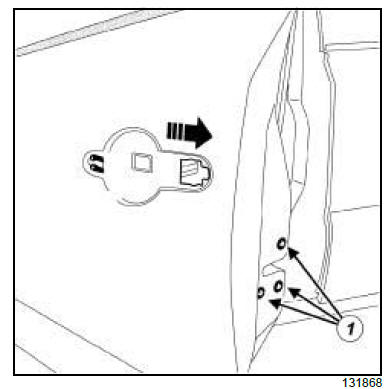

  • Remove the bolts (1) .
  • Disconnect the connectors (depending on equipment level).
  • Remove the lock and the module through the door box section.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Refit the base of the exterior handle and connect the connectors (depending on equipment level).

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front side door lock module.
  • Connect the connectors.
  • Refit the bolts (1) .
  • Torque tighten the front side door lock bolts (6 N.m) (1) .
  • Refit:
    • the door exterior handle (see 51A, Side opening element mechanisms, Exterior door handle: Removal - Refitting, page 51A-7) ,
    • the front side door lock barrel (see 51A, Side opening element mechanisms, Front side door lock barrel: Removal - Refitting, page 51A-5) .

III - FINAL OPERATION.

  • Refit:
    • the lock blanking cover,
    • the front side door sliding window (see 54A, Windows, Front side door sliding window: Removal - Refitting, page 54A-4) (54A, Windows),
    • the front side door control module (see 51A, Side opening element mechanisms, Front side door electric window mechanism: Removal - Refitting, page 51A-10) ,
    • the front side door trim (see Front side door trim: Removal - Refitting) (72A, Side opening element trim).
