Renault Koleos Service Repair Manual: Drive plate: Removal - Refitting

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

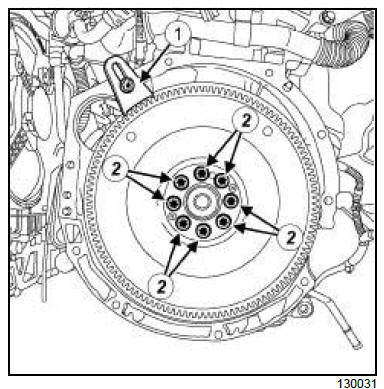

  • Position the (Mot. 1431) (1) .
  • Remove:
    • the drive plate bolts (2) ,
    • the drive plate,
    • the (Mot. 1431).

REFITTING

I - REFITTING PREPARATION OPERATION

  • Systematically replace the drive plate bolts.
  • Check that the drive plate is not damaged (run-out tolerance of 0.2 mm on the outer diameter).

II - REFITTING OPERATION FOR PART CONCERNED

  • Fit the drive plate, ensuring it is correctly positioned in relation to the centring pins.

Automatic gearbox

  • Refit the new drive plate bolts.
  • Position the (Mot. 1431).

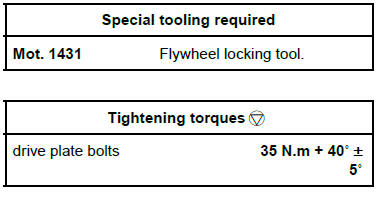

  • Tighten to torque, to angle and in order the drive plate bolts (35 N.m + 40º +- 5º).
  • Remove the (Mot. 1431).

III - FINAL OPERATION.

  • Refit the automatic gearbox.

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

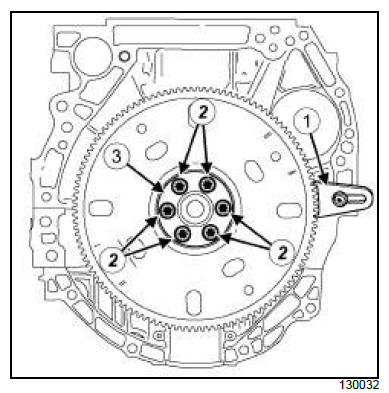

  • Position the (Mot. 1431) (1) .
  • Remove:
    • the drive plate bolts (2) ,
    • the (Mot. 1431),
    • the stiffener plate (3) ,
    • the drive plate.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Systematically replace the drive plate bolts.
  • Check that the drive plate is not damaged (run-out tolerance of 0.2 mm on the outer diameter).

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the drive plate,
    • the stiffener plate,
    • the drive plate bolts,
    • the (Mot. 1431).

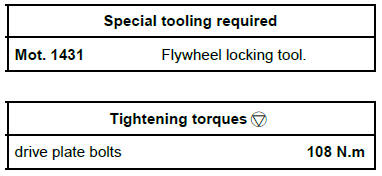

  • Torque tighten the drive plate bolts (108 N.m).
  • Remove the (Mot. 1431).

III - FINAL OPERATION.

  • Refit the automatic gearbox.
