6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Shift the gear lever to Neutral.
  • Disconnect the battery.
  • Remove:
    • the air inlet sleeve.
    • the engine cover.

Automatic gearbox

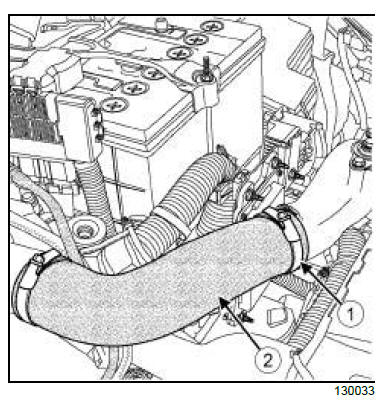

  • Remove the turbocharger hose clip (1) .
  • Disconnect the turbocharger hose (2) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

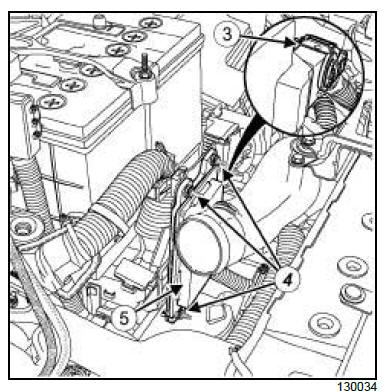

  • Disconnect the automatic transmission computer connector (3) .
  • Remove:
    • the automatic transmission computer nuts (4) ,
    • the automatic transmission computer (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the automatic transmission computer,
    • the automatic transmission computer nuts.

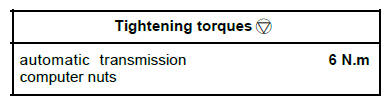

  • Torque tighten the automatic transmission computer nuts (6 N.m).
  • Connect the automatic transmission computer connector.

II - FINAL OPERATION

  • Refit:
    • the turbocharger hose,
    • the turbocharger hose clip,
    • the engine cover,
    • the air inlet sleeve.
  • Connect the battery.

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Shift the gear lever to Neutral.
  • Remove:
    • the battery.
    • the battery tray.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Automatic gearbox

  • Remove:

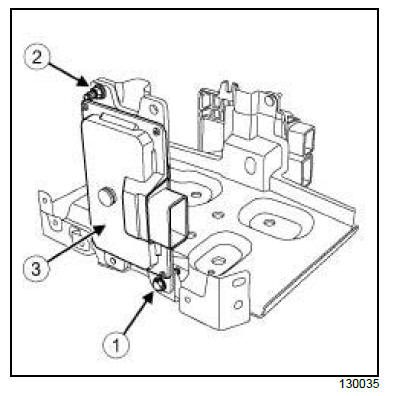

    • the automatic transmission computer bolt (1) ,
    • the automatic transmission computer nut (2) ,
    • the automatic transmission computer (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the automatic transmission computer,
    • the automatic transmission computer bolt,
    • the automatic transmission computer nut.

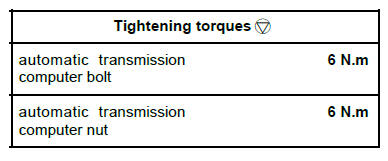

  • Torque tighten:
    • the automatic transmission computer bolt (6 N.m),
    • the automatic transmission computer nut (6 N.m).

II - FINAL OPERATION.

  • Refit:
    • the battery tray.
    • the battery.
