6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

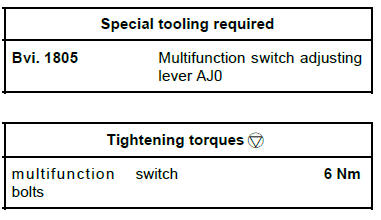

Adjust the multifunction switch using the (Bvi. 1805) when removing and refitting the multifunction switch or during fault finding.

ADJUSTMENT

Automatic gearbox

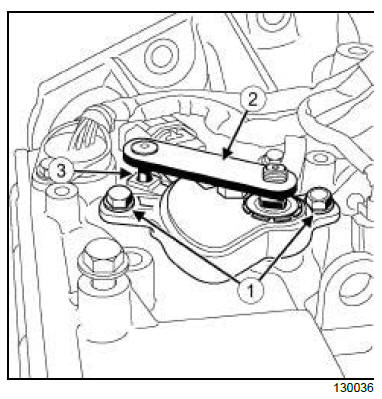

Loosen the multifunction switch bolts (1) .
Position the tool (Bvi. 1805) (2) on the control lever and align the shaft of the tool opposite the relevant hole on the multifunction switch (3) .
Torque tighten the multifunction switch bolts (6 Nm).
Remove the (Bvi. 1805).

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

Adjust the multifunction switch using a 3 mm offset wrench when removing and refitting the multifunction switch or during fault finding.

ADJUSTMENT

Automatic gearbox

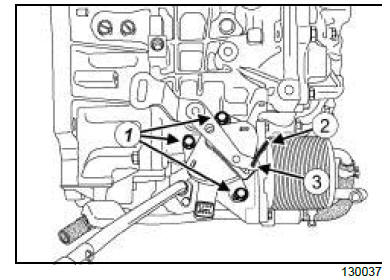

Loosen the multifunction switch bolts (1) .
Position a 3 mm (2) Allen key on the control lever and align the shaft of the tool opposite the relevant hole on the multifunction switch (3) .

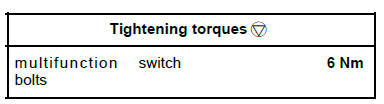

Torque tighten the multifunction switch bolts (6 Nm).
Remove the Allen key (2) .
