Renault Koleos Service Repair Manual: Converter seal: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Automatic gearbox / Converter seal: Removal - Refitting

FK0 or FK8

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Remove the converter.

Automatic gearbox

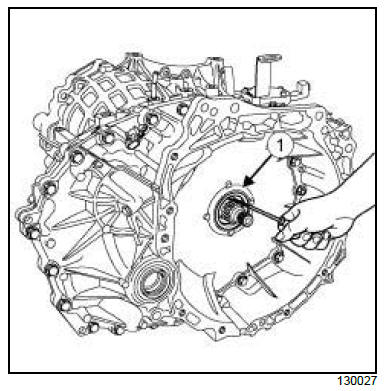

  • Remove the converter seal (1) using a screwdriver, taking care not to scratch the contact surfaces.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Automatic gearbox

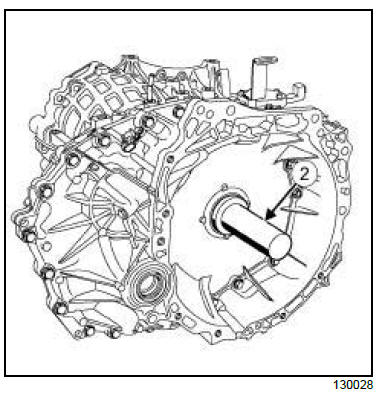

  • Refit the converter seal using the tool (Bvi. 1856) (2)

II - FINAL OPERATION.

  • Refit the converter.

Automatic gearbox

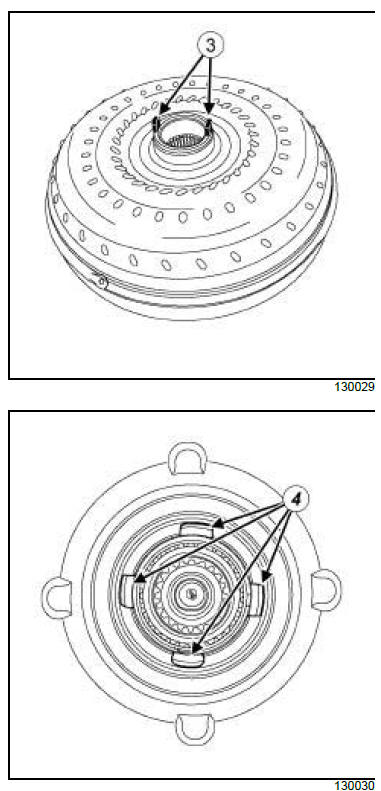

  • Check that the converter lugs (3) are engaged in the drive sprocket holes (4) .
  • Refit the automatic gearbox.

6-SPEED AUTOMATIC GEARBOX

Automatic gearbox

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove the automatic gearbox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Remove the converter.

Automatic gearbox

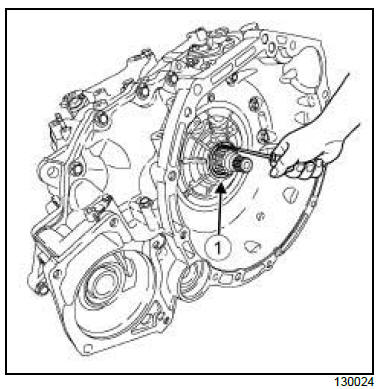

  • Remove the converter seal (1) using a screwdriver, taking care not to scratch the contact surfaces.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Automatic gearbox

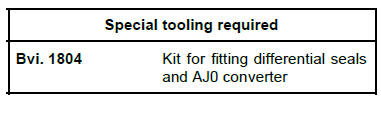

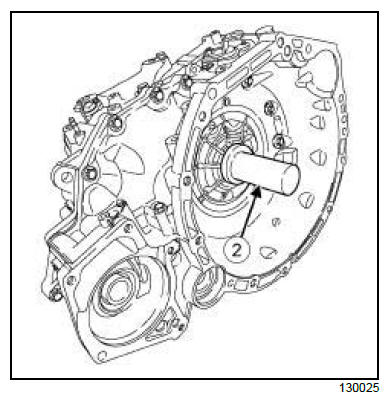

  • Refit the converter seal using tool (Bvi. 1804) (2) .

II - FINAL OPERATION.

  • Refit the converter.

Automatic gearbox

  • Check:

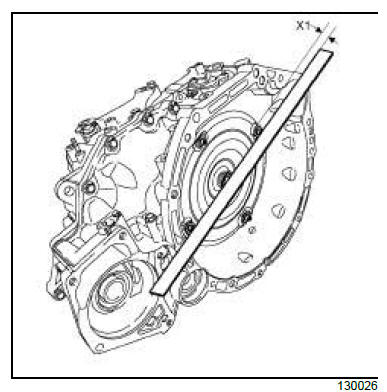

    • that the converter correctly is inserted using a rule and a straightedge,
    • that the distance (X1) between the mating face and the rule is at least 20.4 mm.
  • Refit the automatic gearbox.
    Automatic gearbox: Removal - Refitting

    Drive plate: Removal - Refitting
