FRONT AND REAR PROXIMITY RADAR

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

1 - Front parking distance control buzzer

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

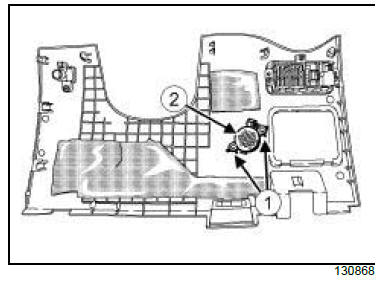

  • Remove:
    • the front parking distance control buzzer bolts (1) ,
    • the front parking distance control buzzer (2) .

2 - Rear parking distance control buzzer

  • Remove the C-pillar lower trim on the left-hand side (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim).

Electrical equipment

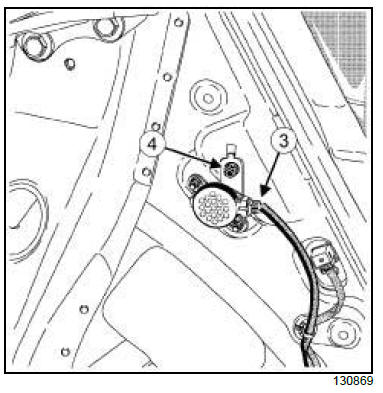

  • Disconnect the connector (3) from the rear parking distance control buzzer.
  • Remove:
    • the rear parking distance control buzzer bolt (4) ,
    • the rear parking distance control buzzer.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

1 - Front parking distance control buzzer

  • Refit:
    • the front parking distance control buzzer,
    • the front parking distance control buzzer bolts,
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

2 - Rear parking distance control buzzer

  • Refit:
    • the rear parking distance control buzzer,
    • the rear parking distance control buzzer bolts.
  • Connect the rear parking distance control buzzer connector.
  • Refit the C-pillar lower trim on the left-hand side (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim).
