ELECTRICAL SUNROOF + FIXED REAR SECTION

Electrical equipment

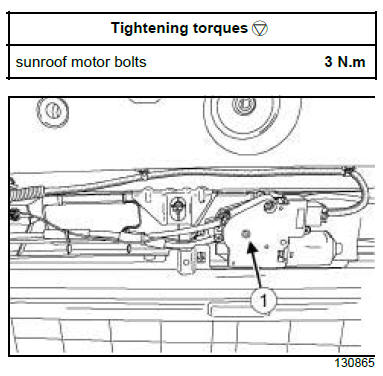

Note: In the event of a fault, the electric sunroof motor can be moved manually at (1) using an Allen key.



Note: The sunroof motor and the electric sunroof computer cannot be separated.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • Remove the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

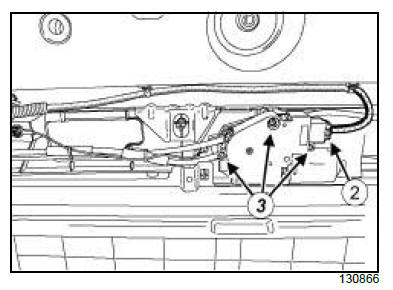

  • Disconnect the connector (2) from the sunroof motor.
  • Remove:
    • the bolts (3) from the sunroof motor,
    • the sunroof motor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the sunroof motor,
    • the sunroof motor bolts.
  • Torque tighten the sunroof motor bolts (3 N.m).
  • Connect the sunroof motor connector.

II - FINAL OPERATION.

  • Refit the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).
  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
