Rear and side lights: changing bulbs

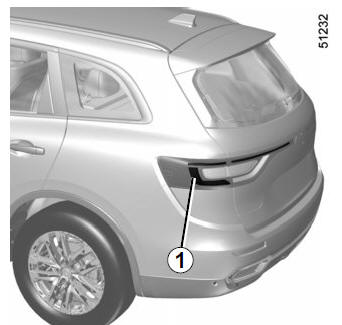

Side lights and brake lights 1

Consult an approved Dealer.

Rear and side lights: changing bulbs

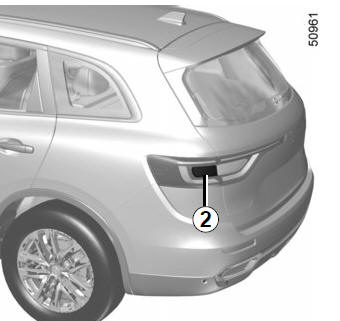

Direction indicators 2

Consult an approved Dealer.

Rear and side lights: changing bulbs

Reversing lights

Open the tailgate.

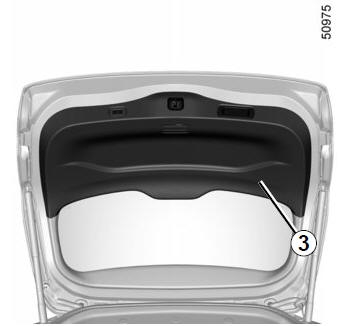

Unclip the trim 3 and remove it.

The bulbs are under pressure and can break when replaced.

Risk of injury.

Rear and side lights: changing bulbs

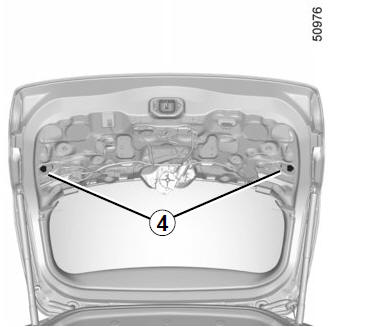

Turn bulb holder 4 fully anticlockwise and change the bulb.

Refitting To refit, proceed in the reverse order, taking care not to damage the wiring.

Bulb type: W16W.

Rear and side lights: changing bulbs

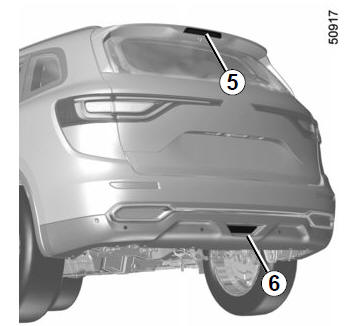

High level brake light 5

Consult an approved dealer.

Rear fog lights 6

Consult an approved dealer.

Rear and side lights: changing bulbs

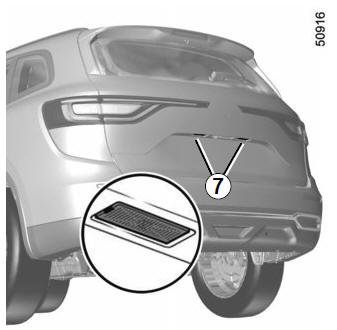

Halogen number plate lights 7

  • Unclip the light 7 (using a tool such as a flat-blade screwdriver).
  • remove the light cover to gain access to the bulb.

Bulb type: W5W.

LED number plate light 7

Consult an approved dealer.

Rear and side lights: changing bulbs

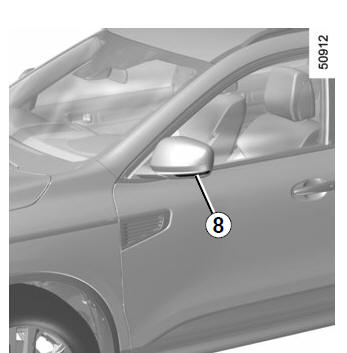

Side indicator lights 8

Consult an authorised dealer.

The bulbs are under pressure and can break when replaced.

Risk of injury.
