Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

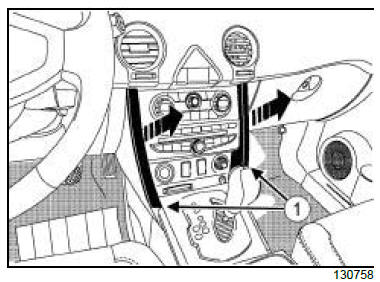

  • Remove the centre front panel side trim (1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

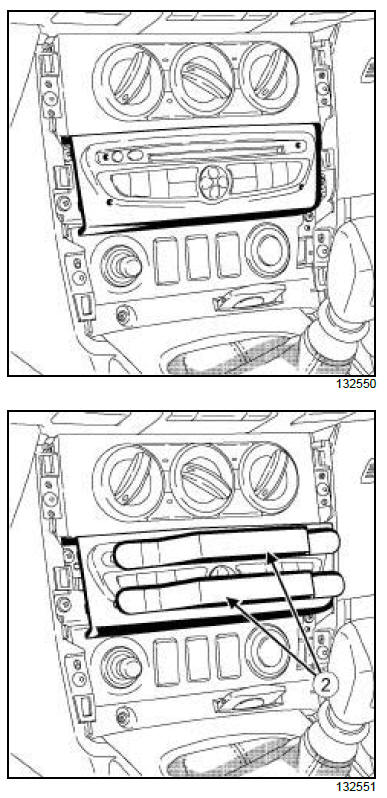

  • Remove the radio using the tool (Ms. 1373) (2) .
  • Disconnect the connectors.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connectors.
  • Refit the radio.

II - FINAL OPERATION.

  • Refit the centre front panel side trim.
