I - LIST OF COMPONENTS

  1. UCH
  2. Front electric window switch on the driver's door
  3. Front electric window switch on the passenger door
  4. Rear window winder switch

II - LOCATION OF COMPONENTS

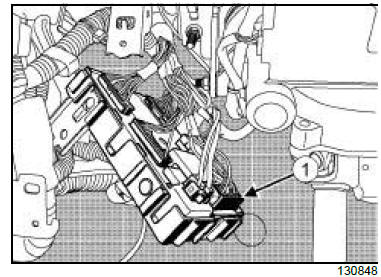

1 - UCH

Electrical equipment

The UCH is located in the dashboard, behind the passenger compartment relay unit. To remove it.

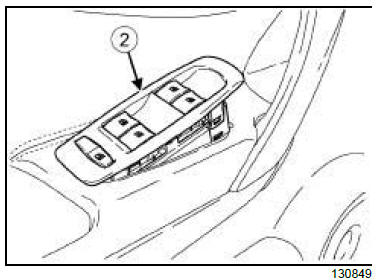

2 - Front electric window switch on the driver's door

Electrical equipment

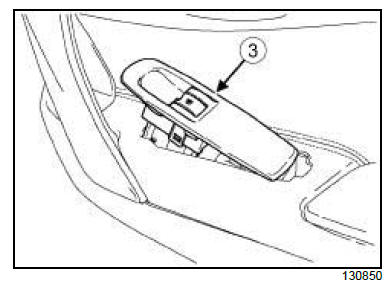

3 - Front electric window switch on the passenger door

Electrical equipment

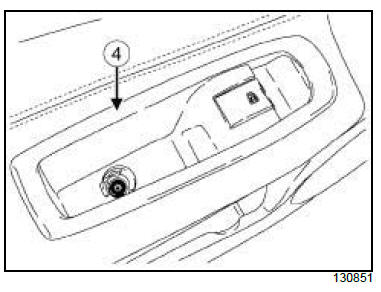

4 - Rear window winder switch

Electrical equipment
