HEADLIGHT WASHERS WITH BLADE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

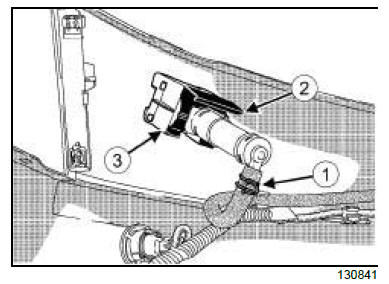

  • Remove the clip (1) from the supply pipe.
  • Disconnect the supply pipe.
  • Unclip the headlight washer jet clip (2) .
  • Remove the headlight washer jet support (3) .

Electrical equipment

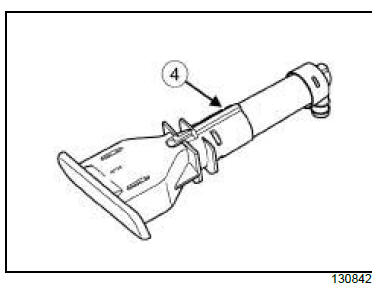

  • Remove the headlight washer jet (4) from the front bumper.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Fit the headlight washer jet to the front bumper.
  • Refit:
    • the headlight washer jet support,
    • the headlight washer jet clip.
  • Connect the supply pipe.
  • Refit the supply pipe mounting clip.

II - FINAL OPERATION.

  • Refit the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

Front screen washer jet: Removal - Refitting

Electrical equipment

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

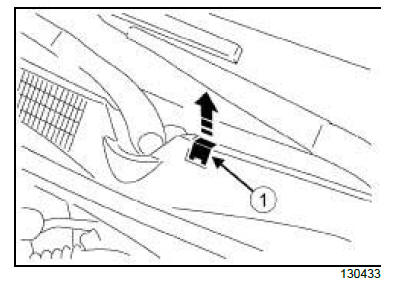

  • Unclip the windscreen washer jet (1) using the (Car.1363).
  • Disconnect the pipe from the windscreen washer jet.
  • Attach the pipe for the windscreen washer jet using adhesive tape so that the windscreen washer jet pipe does not fall into the scuttle panel half-grille.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Connect the pipe for the windscreen washer jet.
  • Clip on the windscreen washer jet.
    Headlight washer pump: Removal - Refitting

    Rear screen washer jet: Removal - Refitting
