Renault Koleos Service Repair Manual: Headlight washer pump: Removal - Refitting

HEADLIGHT WASHERS WITH BLADE

REMOVAL

I - REMOVAL PREPARATION OPERATION

• Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
• Partially remove the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

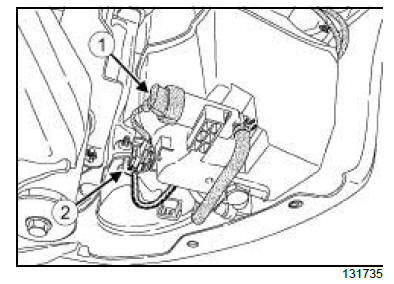

• Unfasten clip (1) .
• Disconnect:
  • the headlight washer hose,
  • the headlight washer pump connector (2) .

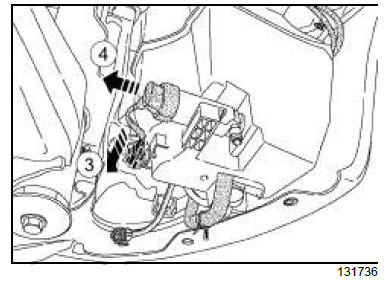

• Unclip:
  • the headlight washer pump connector in the direction (3) ,
  • the headlight washer pump in the direction (4) .
• Remove the headlight washer pump - headlight washer pump connector assembly from the screen washer reservoir.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

• Refit the headlight washer pump - headlight washer pump connector assembly to the screen washer reservoir.
• Clip on the headlight washer pump connector.
• Connect:
  • the headlight washer pump connector,
  • the headlight washer hose.
• Clip on the clip.

II - FINAL OPERATION.

• Fit the front wheel arch liner (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection).
