Alarm: List and location of components

ALARM 01

I - LIST OF COMPONENTS

1. Front parking distance control buzzer
2. Rear parking distance control buzzer
3. Instrument panel buzzer

II - POSITION OF THE COMPONENTS

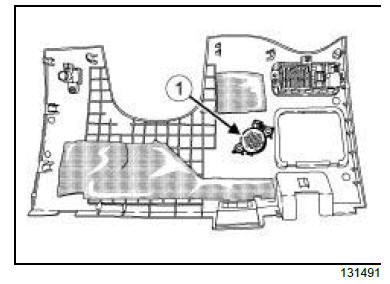

1 - Front parking distance control buzzer

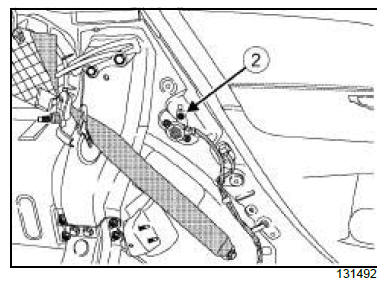

2 - Rear parking distance control buzzer

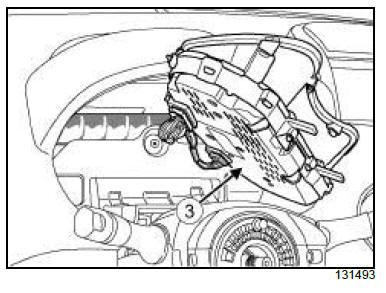

3 - Instrument panel buzzer

Bonnet switch: Removal - Refitting

ALARM 01

REMOVAL

REMOVAL OF PART CONCERNED

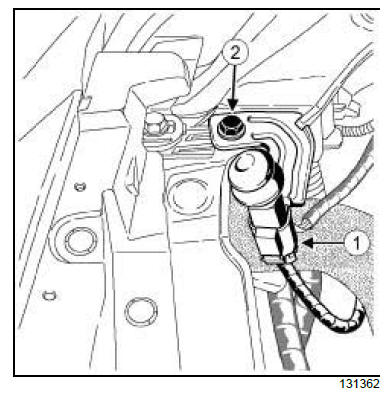

• Disconnect the connector (1) from the bonnet switch.
• Remove:
  • the bonnet switch bolt (2) ,
  • the bonnet switch with the support.

REFITTING

REFITTING PART CONCERNED

• Refit:
  • the bonnet switch with the support,
  • the bonnet switch bolt.
• Connect the bonnet switch connector.

Anti-intrusion alarm sensor: Removal - Refitting

ALARM 01

REMOVAL

REMOVAL OF PART CONCERNED

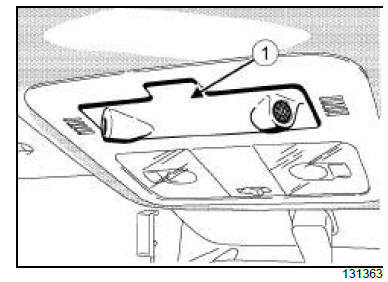

• Unclip the cover (1) from the anti-intrusion alarm sensor.

• Unclip:

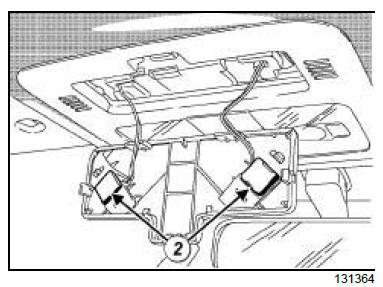

  • the anti-intrusion alarm sensor detector clips (2) ,
  • the anti-intrusion alarm sensor detector from the cover.
• Remove the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).

• Remove:

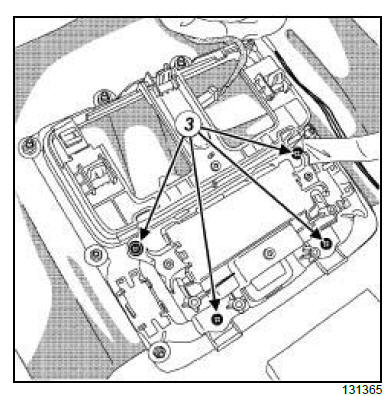

  • the anti-intrusion alarm sensor bolts (3) ,
  • the anti-intrusion alarm sensor.

REFITTING

REFITTING PART CONCERNED

• Refit:
  • the anti-intrusion sensor,
  • the anti-intrusion sensor bolts,
  • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).
• Clip:
  • the anti-intrusion alarm sensor detector on the cover,
  • the anti-intrusion alarm sensor detector clips,
  • the anti-intrusion alarm sensor cover.
