Instrument panel: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
Note: The steering wheel does not need to be removed.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

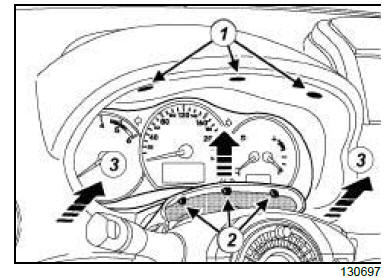

  • Remove the bolts (1) .
  • Unclip the clips (2) .
  • Remove the bottom of the instrument panel trim in the direction of the arrows (3) .

Electrical equipment

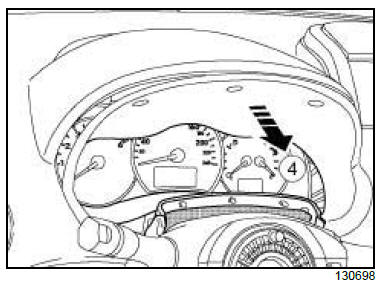

  • Remove the top of the instrument panel trim in the direction of the arrow (4) .

Electrical equipment

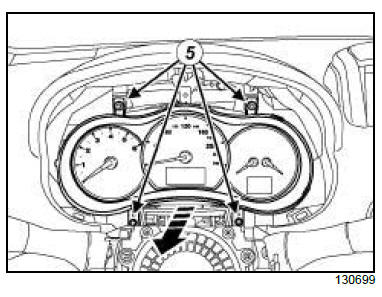

  • Remove the bolts (5) from the instrument panel.

Electrical equipment

  • Remove the instrument panel.

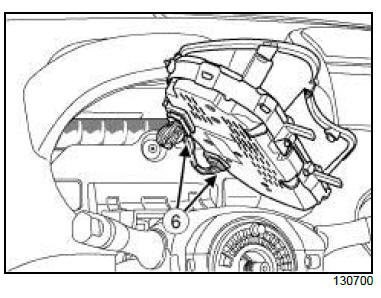

  • Disconnect the connectors (6) from the instrument panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the connectors to the instrument panel.
  • Refit:
    • the instrument panel,
    • the instrument panel bolts,
    • the instrument panel trim.
  • Clip the clips onto the upper half cowling.
  • Refit the instrument panel trim bolts.

II - FINAL OPERATION.

  • Connect the battery (see 80A, Battery, Battery: Removal - Refitting, page 80A-3) .
  • When replacing the instrument panel, carry out the necessary operations using the Diagnostic tool (see Fault finding - Replacement of components) (83A, Instrument panel).

Vehicle position sensor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

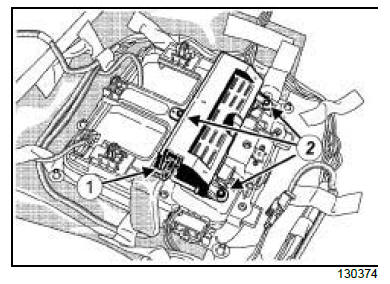

  • Disconnect the vehicle location sensor connector (1) .
  • Remove:
    • the vehicle location sensor bolts (2) ,
    • the vehicle location sensor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the vehicle location sensor,
    • the vehicle location sensor bolts.
  • Connect the vehicle location sensor connector.

II - FINAL OPERATION.

  • Refit the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).
