Renault Koleos Service Repair Manual: Horn

Audible WARNING: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

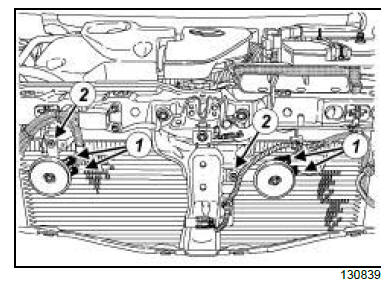

  • Disconnect the audible WARNING connectors (1) .
  • Remove:
    • the audible WARNING bolts (2) ,
    • the audible WARNINGs.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the audible WARNINGs.
  • Torque tighten the audible WARNING bolts (21 N.m).
  • Connect the audible WARNING connectors.

II - FINAL OPERATION.

  • Refit the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
