REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Unclip the luggage compartment light (1) by compressing the clip using a small flat-blade screwdriver.
  • Disconnect the connector.

Electrical equipment

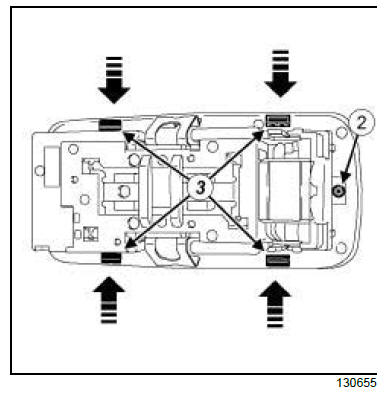

  • Remove the bolt (2) .
  • Unclip the translucent cover by unclipping the clips (3) .

Electrical equipment

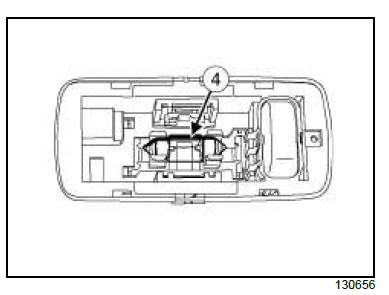

  • Remove the bulb (4) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing the bulb, use an approved 12V 8W bulb.
  • Refit the bulb.
  • Clip the translucent cover in place.
  • Refit the bolt.
  • Connect the connector.
  • Refit the luggage compartment light.
