REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the glovebox.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

  • Disconnect the storage compartment light connector.

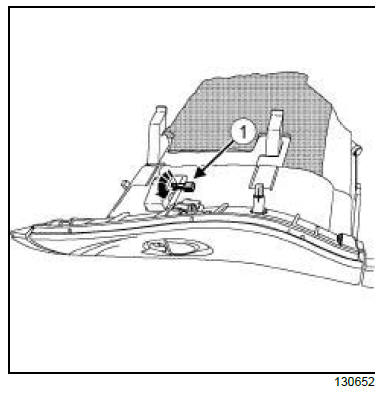

  • Remove the bulb and mounting assembly (1) by rotating in an anti-clockwise direction.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • When replacing the storage compartment light bulb, replace the storage compartment light assembly.
  • Refit the storage compartment light (1) by rotating it clockwise.
  • Connect the connector.

II - FINAL OPERATION

  • Refit the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).

Centre console light: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

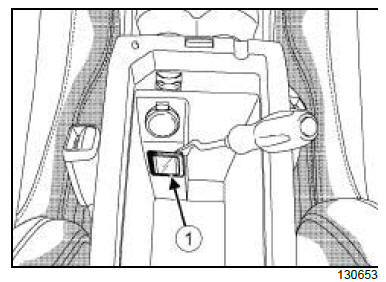

  • Remove the centre console light (1) using a small flat-blade screwdriver.
  • Disconnect the connector.
  • Remove the bulb.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • Connect the connector.
  • Refit the centre console light.
