Renault Koleos Service Repair Manual: Fixed glass roof sunblind: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Non-side opening element mechanisms / Fixed glass roof sunblind: Removal - Refitting

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87D, Electric windows - Sunroof).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove:

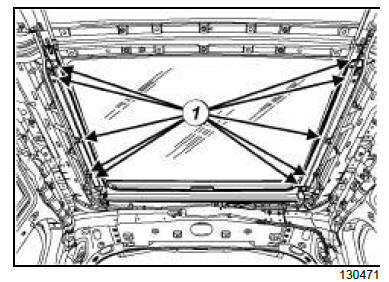

    • the bolts (1) of the fixed glass roof sunblind,
    • the fixed glass roof sunblind.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Note: When removing and refitting the mobile panel, coat the bolts with a small amount of frenbloc.

When replacing the mobile panel, replace the bolts with the bolts supplied with the mobile panel.
  • Refit:
    • the bolts of the fixed glass roof sunblind,
    • the fixed glass roof sunblind.

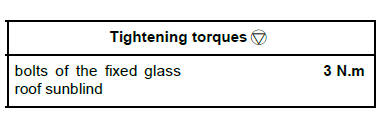

  • Torque tighten the bolts of the fixed glass roof sunblind (3 N.m).

II - FINAL OPERATION.

  • Refit:
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87D, Electric windows - Sunroof),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).
