REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements trim

  • Support the boot chute trim using a suitable tool.
  • Remove:

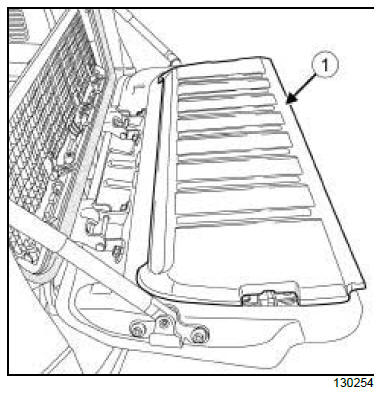

    • the trim (1) using the (Car. 1363),
    • the handle cover.

Non-side opening elements trim

  • Remove:

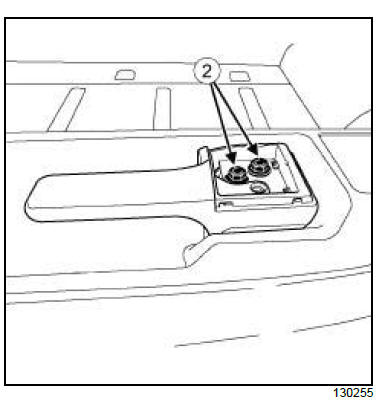

    • the bolts (2) ,
    • the boot chute handle.

Non-side opening elements trim

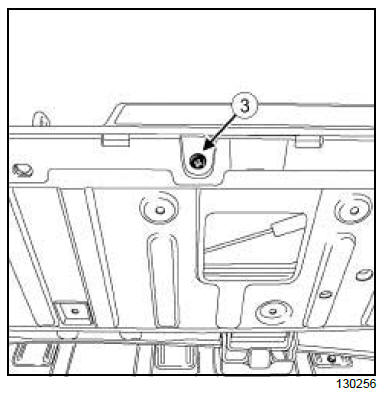

  • Remove the bolt (3) .

Non-side opening elements trim

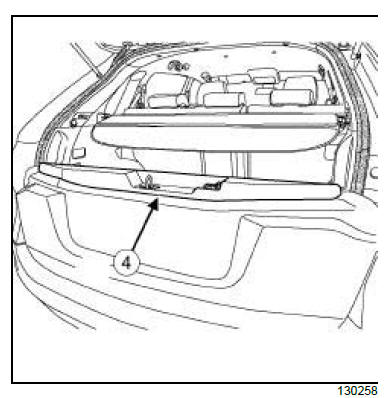

  • Remove the upper trim (4) from the boot chute.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Replace the boot chute trim clips if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the upper trim (4) of the boot chute,
    • the bolt (3) ,
    • the boot chute handle,
    • bolt (2) .
  • Support the boot chute trim using a suitable tool.
  • Refit the trim (1) .
