Renault Koleos Service Repair Manual: Tailgate lining: Removal - Refitting

Non-side opening elements trim

REMOVAL

I - REMOVAL PREPARATION OPERATION

Non-side opening elements trim

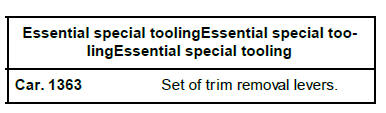

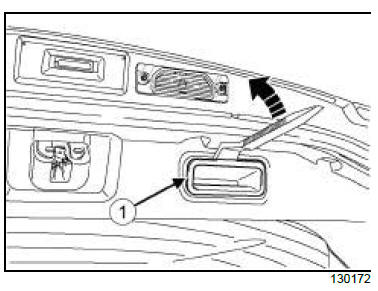

  • Remove the trim (1) using the (Car. 1363)

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements trim

  • Remove:

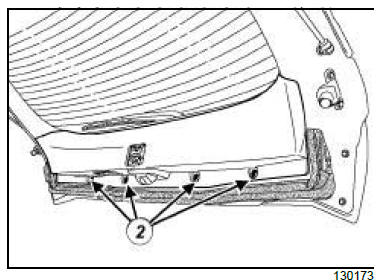

    • the clips (2) ,
    • the tailgate lower trim.

Non-side opening elements trim

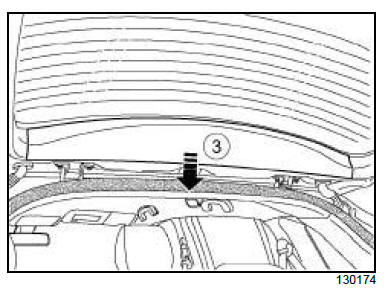

  • Remove the upper trim (3) from the tailgate.

Non-side opening elements trim

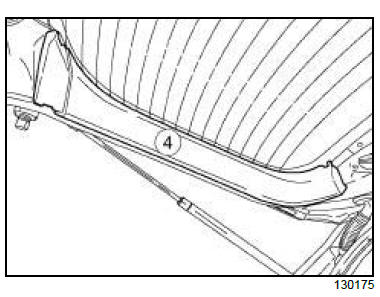

  • Remove the side trim (4) from the tailgate.

REFITTING

I - REMOVAL PREPARATION OPERATION

  • Replace the tailgate trim clips if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the side trim (4) on the tailgate,
    • the upper trim (3) on the tailgate,
    • the lower trim on the tailgate,
    • the clips (2) ,
    • the trim (1) .
    Non-side opening elements trim

    Tailgate hatch trim: Removal - Refitting
